YAMAHA YM1050EQ

YAMAHA YM 1050 EQ

1-ANT+

9-Speaker LR-  LF-

16-GND

2-LIN - L+

10-SPEAKER LF+

18-LIN - R-

3-LIN - R+

11-SPEAKER RR+

19-LIN - L-

5-+12 VOLT IGNITION WIRE

12-Speaker RR-  RF-

20-+12 VOLT BATTERY WIRE

7-SPEAKER LR+

14-SPEAKER RF+

-








YAMAHA YM9600

Yamaha YM9600

1-ANT

13-SPEAKER RR+ (R+ HI)

3-SPEAKER LR+ (L+ HI)

14-SPEAKER RR-  RF+

4-SPEAKER LR-  LF+

15-SPEAKER RF- (R- HI)

5-SPEAKER LF- (L- HI)

19-+12 VOLT IGNITION WIRE

9-Power Antenna Turn On

20-GND

10-+12 VOLT BATTERY WIRE

-

11-ANT GND

A - ANT GND








YAMAHA YCR-325S

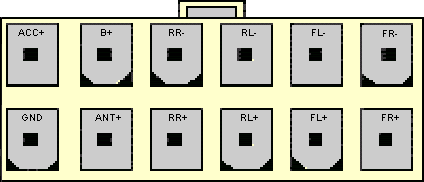

YAMAHA YM-9900RC
