PHILIPS Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install












PHILIPS

PHILIPS SC201, CAR400, CCR600





PHILIPS SC201

A

B

C

4-+12 VOLT BATTERY WIRE

1-Speaker RR+

1-SDA

5-Power Antenna Turn On

2-Speaker RR-

2-SCL

6-Dash Light Dimmer Wire

3-Speaker RF+

3-GND

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

4MCS(MBR)

8-GND

5-Speaker LF+

-

-

6-Speaker LF-

-

-

7-Speaker LR+

-

-

8-Speaker LR-

-







PHILIPS CAR400

A

B

C

1-SDV

1-Speaker RR+

1-SDA

2-SAC

2-Speaker RR-

2-SCL

3-TEL MUTE

3-Speaker RF+

3-TIS

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-MRQ

5-Power Antenna Turn On

5-Speaker LF+

6-DDL

6-Dash Light Dimmer Wire

6-Speaker LF-

-

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

-

8-GND

8-Speaker LR-

-





PHILIPS CCR600

A

B

C

1-SDV

1-Speaker RR+

1-SDA

2-SAC

2-Speaker RR-

2-SCL

3-TEL MUTE

3-Speaker RF+

3-TIS

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-MRQ

5-Power Antenna Turn On

5-Speaker LF+

5-CL

6-Dash Light Dimmer Wire

6-Speaker LF-

6-DDL

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

7-CH

8-GND

8-Speaker LR-

8-IH

-

-

9-CDL

-

-

10-CDR







PHILIPS DC670

Philips DC670

1-GND

2-+12 VOLT IGNITION WIRE

3-Dash Light Dimmer Wire

4-Power Antenna Turn On

5-+12 VOLT BATTERY WIRE

6-  -----

7-  -----





PHILIPS

PHILIPS

A

B

C

1-TEL MUTE

1-Speaker RR+

1-Line out LR

2-REMOTE GND

2-Speaker RR-

2-Line out RR

3-REMOTE

3-Speaker RF+

3-GND Line out

4-+12 VOLT BATTERY WIRE

4-Speaker RF-

4-Line out LF

5-Power Antenna Turn On

5-Speaker LF+

5-Line out RF

6-Dash Light Dimmer Wire

6-Speaker LF-

13-D2B+

7-+12 VOLT IGNITION WIRE

7-Speaker LR+

14-D2B-

8-GND

8-Speaker LR-

15-GND

-

-

16-+12V PERMANENT

-

-

17-+12V SWITCH

-

-

18-AUDIO GND

-

-

19-AUDIO L

-

-

20-AUDIO R

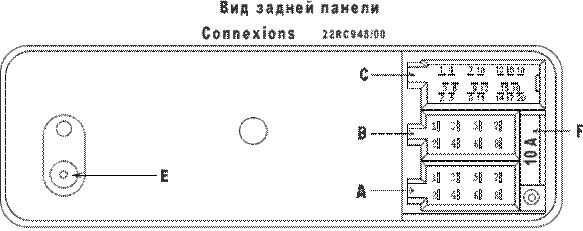

Схематическое расположение разъёмов

A1

Phone mute

B1

Rear right +

C1

Line out LR

A4

Plus accessories or permanent

B2

Rear right -

C2

Line out RR

A5

+ Antenna

B3

Front right +

C3

Line out GND

A6

Pivot light

B4

Front right -

C4

Line out FL

A7

Plus permanent or accessories

B5

Front lrft +

C5

Line out FR

A8

GND

B6

Front left -

C6

+ Switched

-

-

B7

Rear left +

C13

Bus D2B +

G1

Gateway (I2C bus access)

B8

Rear left -

C14

Bus D2B -

G2

Gateway (I2C bus access)

-

-

C15

Bus GND

-

-

E

Aerial plug

C16

+ Permanent

-

-

-

-

C17

+ Swiched

-

-

F

Fuse

C18

Imput reference

-

-

-

-

C19

Imput left

-

-

-

-

C20

Imput right

Разъёмы питания и акустики.

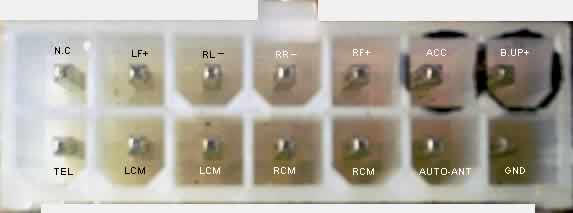

PHILIPS 69DC902/00

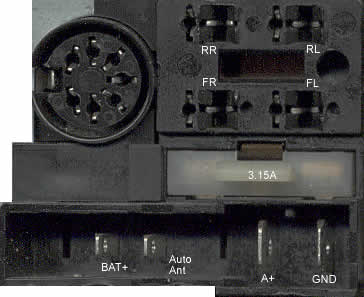

PHILIPS 22DC 665/62R







PHILIPS SC-201





PHILIPS CAR400





PHILIPS CCR600





PHILIPS DC670





PHILIPS







Philips CEM250







PHILIPS 22RC224, 22RC228, 22RC238, 22RC248, 22RC258

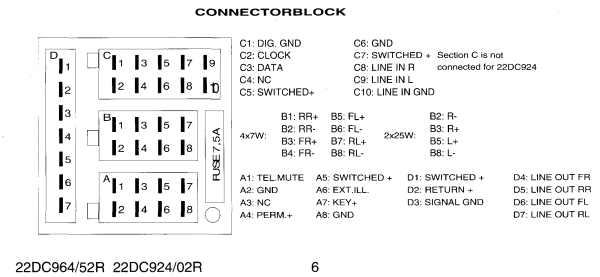

Philips 22DC964-52R 22DC924-02R
