NISSAN Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install










NISSAN

Nissan

1-Speaker LR+

6-Speaker RF+

11-Speaker RF-

2-Speaker RR+

7-+12 VOLT IGNITION WIRE

12-Power Antenna Turn On

3-Speaker LR-

8-Dash Light Dimmer Wire

13-GND

4-Speaker RR-

9-+12 VOLT BATTERY WIRE

-

5-Speaker LF+

10-Speaker LF-

-







NISSAN PN-9660H









NISSAN CSK-9301MA

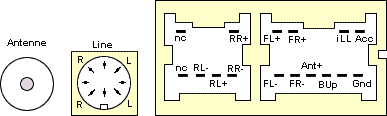

NISSAN PP-9997M









BLAUPUNKT MICRA CD BP2346 (NISSAN)
BLAUPUNKT MICRA CD BP2347 (NISSAN)







NISSAN (CLARION) PN-9524U

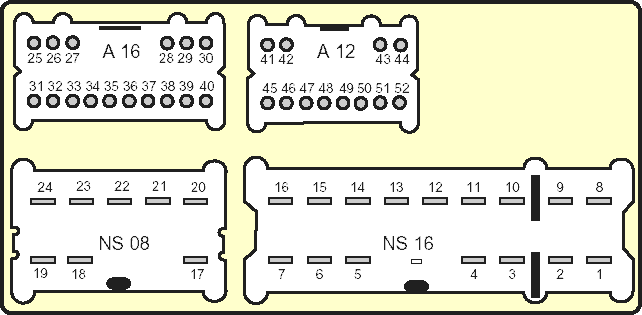

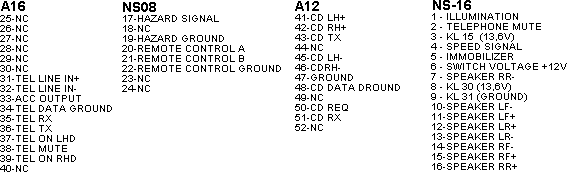

NISSAN PRIMERA







NISANN Blaupunkt BP2773







Nisann Z32 1990-1994



Nisann Z32 1990-1994







Nissan Maxima head unit connector

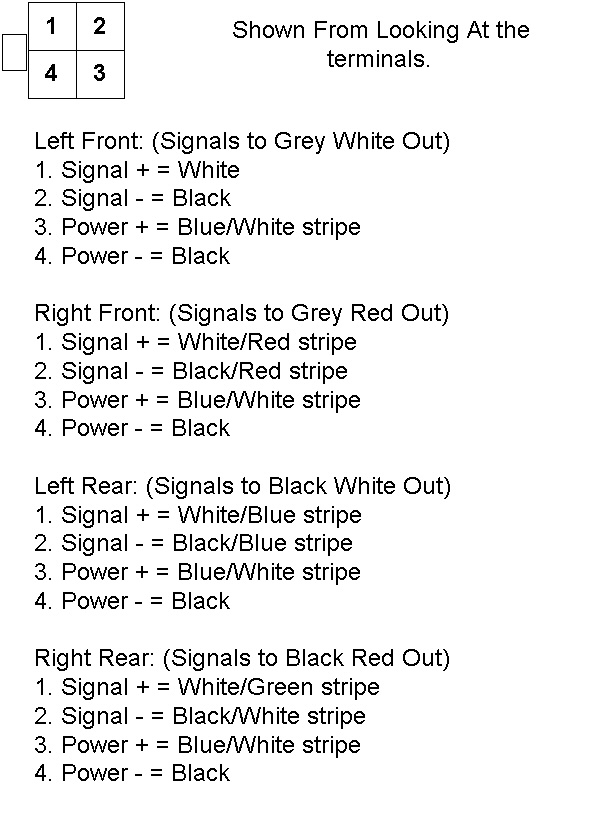

Nissan Maxima amplifier connector





Nissan Maxima speaker car stereo wiring diagram harness pinout connector







NISSAN ET RH Blaupunkt BP 9349 MID LHD Blaupunkt BP 9345







Nissan Qashqai







Nissan radio wiring connector







Nissan Pathfinder 2001 2002 CD changer stereo wiring connector





Nissan 1995 stereo wiring connector







Nissan Pathfinder 2001 2002 stereo wiring connector







Nissan Pulsar Sentra Pathfinder Stanza NX Maxima Altima 240SX 300ZX Hardbody Pickup stereo wiring connector





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

NISSAN

27911

EUROVOX











NISSAN

28185

VISTEON ?

MC68HC11KA4 ? (N760046BFKC004)  FORD M

MCU







NISSAN

A  BP2773

BLAUPUNKT

ST6154Q8/LT

93C46







NISSAN

A  BP2783

BLAUPUNKT



93C46





MICRA ,SERENA ,

VANETTE

NISSAN

A  BP6340

BLAUPUNKT

ZC426115CFN  MC68HC05B16 (8925901731)

MCU







NISSAN

A  SPAN BP6341

BLAUPUNKT

MC68HC05B16 (8925901731)









NISSAN

B  BP6345   28 113-2F000

BLAUPUNKT

ZC426115CFN  MC68HC05B16 (8925901502)   SEC









NISSAN

B  BP6345   28 113-2F000

BLAUPUNKT

ZC426115CFN  MC68HC05B16  (8925901731)









NISSAN

B  SPAN BP6346

BLAUPUNKT

MC68HC05B16  (8925901731)









NISSAN

BP2776

BLAUPUNKT

MC68HC05B6









NISSAN

BP2785

BLAUPUNKT

MC68HC05B6 (89259009015)









NISSAN

BP9342

BLAUPUNKT











NISSAN

C  BP6350

BLAUPUNKT

ZC99164CFN MC68HC05B16 (8925901502)   SEC









NISSAN

ET 00 BP9349

BLAUPUNKT

TI H11-01A968W  XS4B5A095PJ (8925904671)

25LC160







NISSAN

ET 00 BP9349

BLAUPUNKT

TI H11-02A05VW

25LC160







NISSAN

ET 00 BP9349

BLAUPUNKT

TI H11-02AJL9W  (8925904671)

25LC160 + 92256







NISSAN

MID  LINE  BP9345  2048B

BLAUPUNKT



25LC160







NISSAN

MID  LINE  BP9347

BLAUPUNKT

TI H11-01A968W (8925904671)

25LC160





MICRA

NISSAN

MM CD  BP2346

BLAUPUNKT











NISSAN

MOD B  BP2770

BLAUPUNKT



93C46







NISSAN

MOD B  BP3770

BLAUPUNKT



93C46







NISSAN

MOD B  BP3771

BLAUPUNKT



93C46







NISSAN

MOD B  GELB BP2772

BLAUPUNKT



93C46







NISSAN

MOD C  BP2775

BLAUPUNKT

MC68HC05B6 (8925900914)









NISSAN

MOD C  BP9480

BLAUPUNKT



SDE2506







NISSAN

MOD C  BP9490

BLAUPUNKT



SDE2506







NISSAN

MOD C GELB BP4276

BLAUPUNKT

MC68HC05B6 (8925900914)









NISSAN

PN-1580U

CLARION

D178004GC516

93LC46 smd







NISSAN

PN-1628M CT098

CLARION

D78F4216GC124

93LC46 smd

TA8261AH





NISSAN

PN-1675D

CLARION

D78F4216GC110

93LC46 smd







NISSAN

PN-1675H

CLARION

D78F4216GC125

93LC46 smd







NISSAN

PN-2056U CD

CLARION











NISSAN

PN-2064U

CLARION





2xTA8201K





NISSAN

PN-2424N

CLARION



93C46 smd rotated







NISSAN

PN-9268U CH848

CLARION

051-0794-10









NISSAN

PN-9270N LX968

CLARION

Clarion 051-0794-10









NISSAN

PN-9271N CK868

CLARION

Clarion 051-0794-10









NISSAN

PN-9272U CK998

CLARION

Clarion 051-0794-10









NISSAN

PN-9273U CK888

CLARION

Clarion 051-0794-10









NISSAN

PN-9484L CT293

CLARION











NISSAN

PN-9525U CK68B

CLARION



S2430







NISSAN

PN-9526U

CLARION











NISSAN

PN-9624U CK96B

CLARION

LC7232

S24H30







NISSAN

PN-9726U CK953

CLARION

D17006AGF 607

S2914 smd       93C46rotated







NISSAN

PN-9872U

CLARION

D75518GF









NISSAN

PN-9877D

CLARION











NISSAN

PN-9926N CK936  RDS

CLARION

D78054GC 177

93C46 smd







NISSAN

PN-9938U

CLARION

TC9319F-018









NISSAN

PN-9939U

CLARION



93C46 smd







NISSAN

PN-9939V CH916

CLARION

D17006GF 658

93C46 smd







NISSAN

PP-1675H

CLARION



93C46 smd







NISSAN

PP-1675T CT138

CLARION











NISSAN

PP-9940H CK926 panel

CLARION

D78014GC726

93C46 smd







NISSAN

PU-9526

CLARION



93C46X smd







NISSAN

PU-9908U CK954

CLARION

D17006AGF 621

S2914





MAXIMA

NISSAN

PU-9924E CT016

CLARION

D78056FGC012

93C46 smd







NISSAN

PU-9938U CH906

CLARION

TC9319F-018









NISSAN

TRAVELPILOT RNS3 BP1430

BLAUPUNKT

FIS (8638340560A02)

25LC160










NISSAN 92078 025 EUROVOX
NISSAN 27911-J 9001 6931N EUROVOX
NISSAN   FORD MC68HC11KA4 (N760046BFKC004)
NISSAN C1011  PN-9886D CLARION D75116GF763 93C46 smd MC13304T3S
NISSAN CH340  PP-2609T CLARION M30624FGAGP 93C46 smd
NISSAN CH340  PP-2609T CLARION M30624MGA-597GP 93C46 smd TA8275H
NISSAN CH848  PN-9268N CLARION CLARION 051-0794-10
NISSAN CH906  PN-9938U CLARION TC9319F-018   TA7270
NISSAN CH916  PN-9939U CLARION D17006GF658 93C46 smd
NISSAN CH948  PN-9268U CLARION CLARION 051-0794-10   TA8201K x 2
NISSAN CK106  PP-1589G CLARION
NISSAN CK68B  PN-9525U CLARION D1714 S24H30
NISSAN CK868  PN-9271N CLARION CLARION 051-0794-10
NISSAN CK888  PN-9273U CLARION CLARION 051-0794-10
NISSAN CK916  PN-9924U CLARION D78054QC143 + D78014GC726 93C46 smd MC13320T3 x 2
NISSAN CK926  PP-9940H panel CLARION D78014GC726 93C46 smd TA8205AH x 2
NISSAN CK926  PN-9940U panel CLARION D78014GC726 93C46 smd MC13306T3S
NISSAN CK934  PN-9924U CLARION D78056FGC012 + D78014GC726 93C46 smd
NISSAN CK936  PN-9926N RDS CLARION D78054GC177 93C46 smd TA8221H x 2
NISSAN CK936  PN-9924U CLARION D78054GC177 + D78014GC726 93C46 smd TA8220H x 2
NISSAN CK953  PN-9726U CLARION D17006AGF607 S2914 smd MC13306T3S
NISSAN CK954  PN-9908U CLARION D17006AGF621 or 646 S2914 smd MC13306T3S
NISSAN CK964  PN-9872U CLARION D17006AGF625 + D75518GF192 93C46 smd
NISSAN CK968  PN-9270U CLARION CLARION 051-0794-10   TA7250BP + TA7251BP
NISSAN CK96B  PN-9524U CLARION LC7232A S24H30 TA8220H
NISSAN CK98B  PN-9526U CLARION D75116GF763 93C46 smd
NISSAN CK998  PN-9272U CLARION CLARION 051-0794-10
NISSAN CK99B  PN-2064U CD CLARION D75312GF115 S2913 MC13304T
NISSAN CM150  PN-9486Q CLARION
NISSAN CN185  PN-2098L CLARION
NISSAN CN688  PN-2281D BOSE CLARION D17718GC528
NISSAN CN546  PN-2121N BOSE CLARION
NISSAN CN576  PN-2121N BOSE CLARION D78058FGC050
NISSAN CNA48  PN-2344N BOSE  6CD CLARION D17718GC533   NO
NISSAN CNB38  PN-2383D CLARION D17718GC536
NISSAN CS01E  PP-3000B CLARION M30876FJBGP 24C64 smd TA8275HQ
NISSAN CR07A  PP-2609H 6CD CLARION M30624MGA-597GP 93LC46 smd TA8275H
NISSAN CR09B  PN-2736H BOSE  6CD CLARION M30624MGA-617GP 93LC46 smd TA8275HQ
NISSAN CT008  PN-1675D CLARION D78F4216GC110 93LC46 smd TA8261AH
NISSAN CT00A  PP-1675H CLARION   93LC46 smd
NISSAN CT016  PP-9924E CLARION D78056FGC012 93C46 smd
NISSAN CT020  PN-1726M CLARION D784216BGC128 93C46 smd TA8276H
NISSAN CT050  PN-2424N CLARION D742816BGC180 93C46
NISSAN CT058  PN-1629M CLARION D784216BGC110 93LC46 smd
NISSAN CT078  PN-1628M CLARION   93LC46 smd
NISSAN CT098  PN-1628M-N CLARION D78F4216GC124 93LC46 smd
NISSAN CT098  PN-1628M CLARION D784216BGC110 93LC46 smd TA8252H
NISSAN CT138  PP-1675T CLARION D784216BGC124 93LC46 smd TA8261AH
NISSAN CT158  PN-1675H CLARION D78F4216GC125 93LC46 smd
NISSAN CT158  PP-1675H CLARION D784216BGC125 93LC46 smd TA8261H
NISSAN CT293  PN-9484L CLARION   S24H30
NISSAN CT450  PN-2424M CLARION D784216BGC186 93C46 smd TA8276H
NISSAN CV99B  PN-2056U CD CLARION D78212CW603 93C46 NO
NISSAN CY02A  PN-2650N CD CLARION D784216BGC138 93L46 smd
NISSAN CY02E  PN-3001P CLARION M30876FJBGP 24CS64 smd
NISSAN CY03E  PN-3000P CLARION M30876FJBGP 24CS64 smd
NISSAN CY06D  PN-2874F  without display CLARION
NISSAN CY11C  PP-2804T 6CD CLARION   24LC64 smd
NISSAN CY138  PN-2316V CD CLARION D784216BGC115 93C46 smd
NISSAN CY13C  HY00E PN-2805F CD CLARION M30876FJBGP 24LC64 smd TA8275H
NISSAN CY14D  PN-2804N CLARION M30876FJBGP M32C 24LC64 smd TA8275HQ
NISSAN CY17C CLARION   24C16 smd
NISSAN CY25A  PN-2649N CLARION M30624MGA-586GP 93C46 smd
NISSAN CY450  PN-2424M CLARION D784216BGC130 93C46 smd TA8276H
NISSAN CY450  PN-2424N CLARION D742816BGC180 93C46 smd
NISSAN CY458  PN-2165M CLARION
NISSAN CY460  PN-2598M  without display CLARION   93LC46 smd
NISSAN CY478  PN-2424N CLARION D784216BGC139 93LC46 smd TA8276H
NISSAN CY690  PP-2424T CLARION D784216BGC139 93LC46 smd TA8276H
NISSAN LX968  PN-9270N CLARION CLARION 051-0794-10
NISSAN PF230  RM-A50SAMP  CD+MD   D178078GF562 NO LA4744
NISSAN PN-658 MATSUSHITA
NISSAN PN-1580U CLARION D178004GC516 93LC46 smd
NISSAN PN-1629 CLARION D784216BG105 93LC46 smd
NISSAN PN-1721F no display CLARION   93LC46 smd
NISSAN PN-2376H CLARION
NISSAN PN-2419F CLARION
NISSAN PN-2530H BOSE  6CD  no display CLARION
NISSAN PN-2646F CLARION   93L46 smd
NISSAN PN-2865  6CD CLARION   24C16
NISSAN PN-3124N CLARION   24C64 smd
NISSAN PP-9939H CLARION
NISSAN RM-V53GAEA  without display MATSUSHITA
NISSAN SY700 FMS TC9323F025 24C01 LA4743
NISSAN A  BP2773 BLAUPUNKT ST6154Q8/LT (8925900918) 93C46 TDA2005
NISSAN A  BP2783 BLAUPUNKT   93C46
NISSAN A  BP6340 BLAUPUNKT MC68HC05B8 (8925901731)   TDA7372A
NISSAN A  SPAN BP6341 BLAUPUNKT MC68HC05B8 (8925901731)
NISSAN B  BP6345 BLAUPUNKT MC68HC05B8 (8925901731)   SEC   TDA7376B x 2
NISSAN B  BP6345 BLAUPUNKT MC68HC05B16 (8925901502)   SEC   TDA7376B x 2
NISSAN B  SPAN BP6346 BLAUPUNKT MC68HC05B8 (8925901731)
NISSAN C  BP6350 BLAUPUNKT MC68HC05B16 (8925901502)   SEC   TDA7376B x 2
NISSAN MOD B  BP2770 BLAUPUNKT ST6154Q8/HP/5 (8925900456) 93C46
NISSAN MOD B  GELB BP2772 BLAUPUNKT   93C46
NISSAN MOD B  BP3770 BLAUPUNKT   93C46
NISSAN MOD B  BP3771 BLAUPUNKT   93C46
NISSAN MOD C  BP9480 BLAUPUNKT   SDE2506
NISSAN MOD C  BP9490 BLAUPUNKT D1714G484 or D7514G514 SDE2506 TDA2005
NISSAN MOD C  BP2775 BLAUPUNKT MC68HC05B6 (8925900914)
NISSAN BP2776 BLAUPUNKT MC68HC05B6
NISSAN BP2785 BLAUPUNKT MC68HC05B6 (8925900914)   TDA7350 x 2
NISSAN BP3775 BLAUPUNKT MC68HC05B6 (8925900914)
NISSAN BP4776 BLAUPUNKT MC68HC05B6 (8925900914)   TDA7350 x 2
NISSAN BP6440 BLAUPUNKT MC68HC05B16
NISSAN MOD C GELB BP4276 BLAUPUNKT MC68HC05B6 (8925900914)
NISSAN LOW LHD  BP9340 BLAUPUNKT H11-99AC0YW (8925904299) 25160 smd TDA7375
NISSAN LOW RHD  BP9342 BLAUPUNKT
NISSAN MID LHD  BP9345 BLAUPUNKT H11-98C6XTW (8925904300 or 904671) 25160 smd + M92256 smd TDA7376B x 2
NISSAN MID RHD  BP9347 BLAUPUNKT H11-01A968W (8925904671) 25LC160 smd
NISSAN MICRA CD-K  BP2346 BLAUPUNKT ST72T85A5Q (8925905009) 24C16 smd + M35T02 TDA7375A x 2
NISSAN MICRA CD-J  BP2347 BLAUPUNKT ST72T85A5Q (8925905009) 24C16 smd + M35T02 TDA7375A x 2
NISSAN MM CD-K  BP3349 BLAUPUNKT ST72T85A5Q (M990E0326C 8925905504 or 8925905009) 24C16 smd + M35T02 TDA7375A x 2
NISSAN MMR IDC-S  BP5364 BLAUPUNKT D703281Y-A03 (8928906401) 95320 smd TDA7375A x 2
NISSAN MMR IDC-G  BP5365 BLAUPUNKT D703281Y-A03 (8928906401) 95320 smd TDA7375A x 2
NISSAN MMR IDC-T  BP5366 BLAUPUNKT D703281Y-A03 (8928906401) 95320 smd TDA7375A x 2
NISSAN MMR CD-G  BP5389 BLAUPUNKT D703281Y-A04 (8928906525) 95320 smd TDA7375A x 2
NISSAN MMR CD-S  BP5361 BLAUPUNKT D703281Y-A04 (8928906525) 95320 smd TDA7375A x 2
NISSAN MMR CD-T  BP5363 BLAUPUNKT D703281Y-A04 (8928906525) 95320 smd TDA7375A x 2
NISSAN MMR IDC-S  BP5386 BLAUPUNKT D703281Y-A05 (8928906526) 95320 smd TDA7375A x 2
NISSAN MMR IDC-G  BP5387 BLAUPUNKT D703281Y-A05 (8928906526) 95320 smd TDA7375A x 2
NISSAN MMR IDC-T  BP5388 BLAUPUNKT D703281Y-A05 (8928906526) 95320 smd TDA7375A x 2
NISSAN ET RH  BP9349 BLAUPUNKT H11-01A968W (8925904671) 25LC160 smd
NISSAN TRAVELPILOT RNS3  BP1430 BLAUPUNKT FIS (8638340560A02) 25LC160




NISSAN Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

NISSAN Car radio wiring diagrams. Car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

NISSAN auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.



Copyright © 2007 Tehnomagazin.com
Terms & Conditions                                        Privacy Policy                                                Impressum
