KIA PRIDE

KIA Pride

1-+12 VOLT IGNITION WIRE

9-Speaker RR+

13-Speaker LF+

2-GND

10-Speaker RR-

14-Speaker LF-

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

15-Speaker LR+

4-Dash Light Dimmer Wire

12-Speaker RF-

16-Speaker LR-










KIA AUK-2008





KIA AUK-2070










KIA SPECTRA









Kia Spectra 2005 LX









Kia Sorento 2011-2013







KIA Forte SX







KIA PICANTO MORNING 2011-2012







KIA Sportage PA710






Kia Soul









Kia Soul

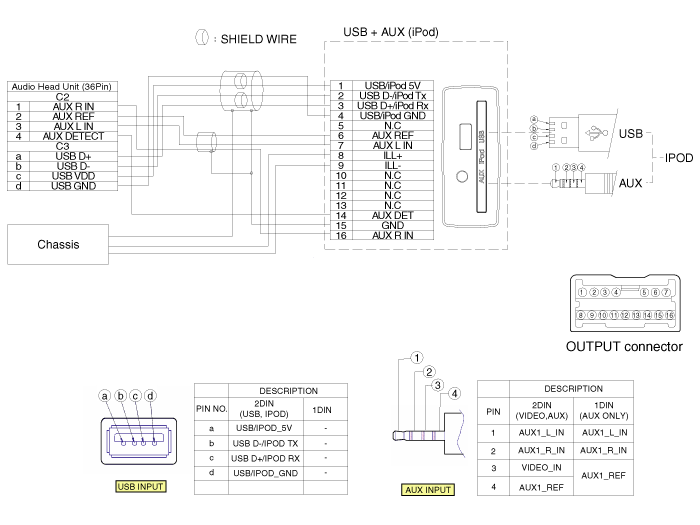

Kia Soul ipod connections wiring diagram







Kia Soul car stereo amplifier wiring harness







Kia Optima







Kia Optima 2013

















Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

KIA

06007

ALPINE

D170010GF

24C02







KIA

A07013

BONTEC

D170010GF

24C02







KIA

AUA-3031

ALPINE

51T65502W02

X24C01







KIA

AUA-5010

ALPINE











KIA

AUA-8511

ALPINE











KIA

AUA-8516

ALPINE

D75P518GF

24C01

2xKIA6210AH





KIA

AUA-8602

ALPINE

51T65502W03

X24C01 smd

2xKIA6210AH





KIA

AUA-8603

ALPINE

51T65502W02

X24C01 smd







KIA

AUA-8606

ALPINE

51T65502W03









KIA

AUA-8609

ALPINE

D17010

X24C01 smd







KIA

AUK-3077

ALPINE

D170010GF 662

24C016 smd







KIA

AUK-3078

ALPINE

D170010GF 662

24C016 smd







KIA

AUK-3079

ALPINE

D170010GF 662

24C016 smd







KIA

AUK-3127

ALPINE

D17P005GP

24C01







KIA

AUK-8617

ALPINE

D17005GF 730

24C016 smd







KIA

AUK-8625

ALPINE











KIA

CRR-75  CR14275

INTERCONTI

PCF..

24C04







KIA

LOGIC CONTROL AUA-8500

ALPINE

D75P516GF W31

X24C01 smd







KIA

LOGIC CONTROL AUK-8610

ALPINE

D170010GF 662

24C016 smd







KIA

LOGIC CONTROL AUK-312

ALPINE



24C016 smd







KIA

PREJIO

ALPINE

D17005GF-730











KIA PREJIO ALPINE D17005GF730
KIA CRR-75 CR14275 INTERCONTI CCR520V1.5 24C04
KIA A06001 BONTEC D170010GF662 24C016 smd KIA8251AH
KIA A06007 BONTEC D170010GF662 24C016 smd
KIA LOGIC CONTROL A06017A BONTEC D170010GF662 24C02 smd KIA8251AH
KIA A07003B BONTEC D170010GF662 24C02 smd KIA8251AH
KIA LOGIC CONTROL A07006 BONTEC D170010GF662 24C02 smd
KIA A07013 BONTEC D170010GF662 24C02 smd
KIA ALPINE LOGIC CONTROL A09007 BONTEC D170010GF662 24C02 smd
KIA A10002 ALPINE D17010GF682 24C02 smd
KIA A10005A BONTEC   24C02 smd
KIA AUA-3020 ALPINE 51T65502W03 X24C01 smd
KIA AUA-3031 ALPINE 51T65502W02 E22 X24C01 smd
KIA AUA-5010 ALPINE
KIA AUA-8511 ALPINE D75P518GF X24C01
KIA ALPINE LOGIC CONTROL AUA-8516 ALPINE D75P516GF X24C01 smd
KIA AUA-8517 ALPINE D75P518GA 24C01
KIA ALPINE LOGIC CONTROL AUA-8600 ALPINE 51T65502W01 E17 X24C01 smd KIA6210AH x 2
KIA ALPINE LOGIC CONTROL AUA-8602 ALPINE 51T65502W03 E22  (D17010) X24C01 smd KIA6210AH x 2
KIA AUA-8603 ALPINE 51T65502W02 E22 X24C01 smd
KIA AUA-8606 ALPINE 51T65502W03 X24C01 smd KIA6210AH
KIA AUA-8609 ALPINE D17010 X24C01 smd
KIA ALPINE LOGIC CONTROL AUK-3077 ALPINE D170010GF662 24C016 smd
KIA LOGIC CONTROL AUK-3078 ALPINE D170010GF662 24C016 smd
KIA AUK-3079 BONTEC D170010GF662 24C02 smd
KIA ALPINE LOGIC CONTROL AUK-3127 ALPINE D17P005GP or D17005GF730 24C01 smd TDA7394 x 2
KIA ALPINE LOGIC CONTROL AUK-3135 ALPINE   24C01 smd
KIA AUK-4515 ALPINE D17010GF659 24C016 smd
KIA ALPINE LOGIC CONTROL AUK-8612 ALPINE D17010GF662 24C01 smd TA8251AH
KIA ALPINE LOGIC CONTROL AUK-8613 ALPINE D17010GF662 24C01 smd
KIA AUK-8613A ALPINE D17010GF662 24C01 smd
KIA AUK-8617 ALPINE D17005GF730 24C016 smd
KIA ALPINE LOGIC CONTROL AUK-8622 ALPINE D17010GF622 24C02 KIA8251AH
KIA ALPINE LOGIC CONTROL AUK-8624 ALPINE D17010GF 24C01 smd
KIA ALPINE LOGIC CONTROL AUK-8625 ALPINE D17010GF659 24C01 smd TA8251AH
KIA ALPINE LOGIC CONTROL AUA-8500 ALPINE D75P516GFW31 X24C01 smd
KIA ALPINE LOGIC CONTROL AUA-8500 ALPINE 51T65471W01 + 51T65472W01 X24C01 smd
KIA ALPINE LOGIC CONTROL AUA-8500 ALPINE D75P518GF X24C01 smd KIA6221AH
KIA LOGIC CONTROL AUK-8610 ALPINE D170010GF662 24C016 smd
KIA LOGIC CONTROL AUA-8614 ALPINE   24C016 smd
KIA LOGIC CONTROL AUK-312 ALPINE   24C016 smd
KIA INKEL FULL LOGIC KRG-7060 ETRONICS INKEL DWP-469 CXP82220 24C02 KIA6221AH x 2
