HYUNDAI ATOS, SONATA

Hyundai Atos, Sonata

1-+12 VOLT IGNITION WIRE

11-Speaker RF+

2-GND

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

-





HYUNDAI H510JE

Hyundai H510JE

1-Power Antenna Turn On

8-Speaker LR+

2-Speaker LR-

9-Speaker LF+

3-Speaker LF-

10-+12 VOLT IGNITION WIRE

4-Speaker RF-

11-+12 VOLT BATTERY WIRE

5-Speaker RR-

12-Speaker RF+

6 - ------

13-Speaker RR+

7-GND

14-Dash Light Dimmer Wire







HYUNDAI (Model: A22004B)









HYUNDAI ATOS
HYUNDAI SONATA










HYUNDAI H510JE









HYUNDAI H-827+EQJ2DN









HYUNDAI H-CDM8022

Using the ISO Connector


1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.





HYUNDAI A22004B





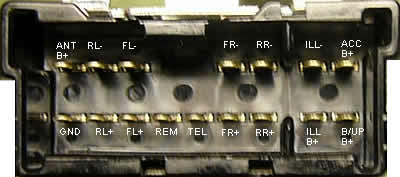

Hyundai Accent





Hyundai Accent







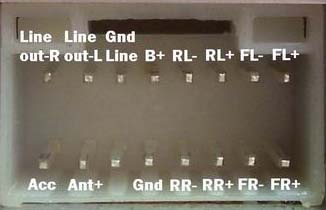

Hyundai Accent RB







Hyundai Elantra 2013





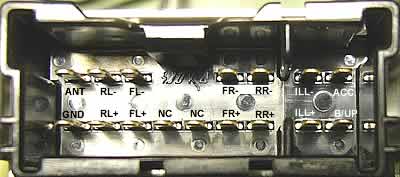

Hyundai Elantra







Hyundai Elantra









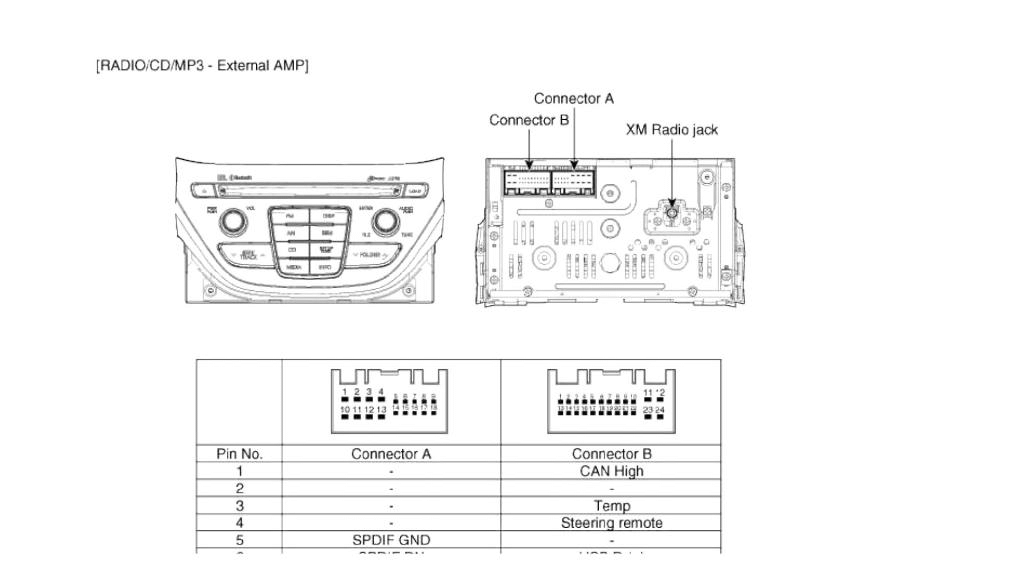

Hyundai Genesis





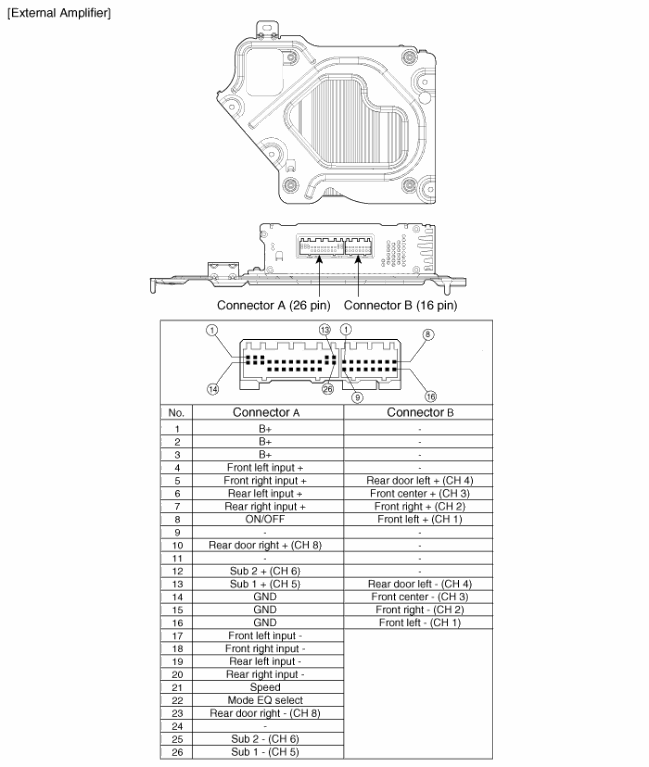

Hyundai Genesis coupe







Hyundai Genesis coupe





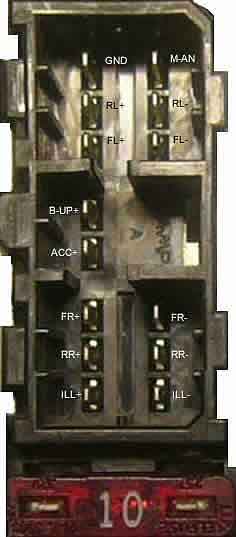

HYUNDAI H-245HPE







HYUNDAI H-827 EQJ2DN







HYUNDAI H-941HFE







Hyundai H-CDM8056 H-CDM8065 H-CDM8068





HYUNDAI H-CDM8057





HYUNDAI H-CMD8050





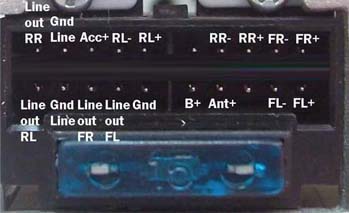

Hyundai PA710S





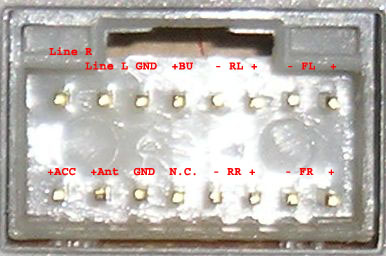

Hyundai Veloster

Hyundai Veloster



Hyundai-Elantra-2007-car-stereo-dashboard removal





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

HYUNDAI

CMOYY92A

ALPINE

51T25755W01









HYUNDAI

H510 SU













HYUNDAI

H510 YE



D17003GF 543









HYUNDAI

H810 JE



D1723GF 636









HYUNDAI

H810 SE



D1723GF 636









HYUNDAI

H810 SU



D1723GF 681









HYUNDAI

H810 YE













HYUNDAI

H815 GD



D17P23GF



KIA6210AH





HYUNDAI

H817













HYUNDAI

H820YE



D75518GF 126









HYUNDAI

H825













HYUNDAI

H827



47C1260









HYUNDAI

H828













HYUNDAI

H829













HYUNDAI

H850YE

CLARION











HYUNDAI

H857













HYUNDAI

H870













HYUNDAI

H877

HEI

D78P014YGC



NEMA





HYUNDAI

HM3764LH

ARTEK

D78012F 603

24C01A

TDA7560





HYUNDAI

HM3964L





24C01A







HYUNDAI

PU9495B

CLARION

D17003GF 543









HYUNDAI

SIOSU













HYUNDAI



MATSUSHITA

D75112GF 574

NMC9306









HYUNDAI BECKER DTM BECKER ST10F269-T3 24C64 smd
HYUNDAI 999   C63502Y 24C04 TDA1557Q x 2
HYUNDAI MONSOON  12220029 DELCO D70F3029Y 09382045 9355093 + 6263665 16219796
HYUNDAI CMOYY92A ALPINE 51T25755W01
HYUNDAI H-245HPE HYUNDAI LC72362N   TA8259H
HYUNDAI H-260KESN HYUNDAI D17P709GC  (H-260-557)   TA8263BH
HYUNDAI H-265KUS HYUNDAI D17P709GC   TA8263BH
HYUNDAI H-818HHE  24v HYUNDAI LC72321 9358   LA4450
HYUNDAI H2245JE HYUNDAI LC72362N   TA8259H
HYUNDAI H460JML(F/U) HYUNDAI
HYUNDAI H510YE   D17003GF543
HYUNDAI H510SU
HYUNDAI H810SE   D1723GF636
HYUNDAI H810JE   D1723GF636
HYUNDAI H810SU   D1723GF681
HYUNDAI H810YE
HYUNDAI H810YU   D1723GF636
HYUNDAI H810XE   D1723GF722   KIA6210AH
HYUNDAI H815GD   D17P23GF   KIA6210AH
HYUNDAI H817YD   D1723GF722 NO KIA6210AH
HYUNDAI H820YE   D75518GF126
HYUNDAI H820 EQLD       KIA6210AH
HYUNDAI H825
HYUNDAI H827 HEI 47C1260F-H728   KIA6210H x 2
HYUNDAI H827 EQYD HYUNDAI 47C1260F-H728   KIA6210H x 2
HYUNDAI H828
HYUNDAI H829
HYUNDAI H850YE HYUNDAI D75518GF126   KIA6210AH
HYUNDAI H850YEH HYUNDAI D75518GF126   KIA6210AH
HYUNDAI H857
HYUNDAI H870
HYUNDAI H877 HEI D78P014YGC   NO
HYUNDAI H941HFE
HYUNDAI HM3764LH ARTEK D78012F603 24C01A TDA7560
HYUNDAI HM3964L     24C01A
HYUNDAI HMP-280JME HYUNDAI
HYUNDAI MP3 SOUND SYSTEM  961803K201CH HYUNDAI M30624MGA-656GP 24C16 smd TA8268
HYUNDAI PU-9495B CLARION D17003GF543
HYUNDAI   MATSUSHITA D75112GF574 NMC9306
