DC motor speed PWM control

schematics free electronic circuits diagram wiring design plans schema DIY projects handbook guide tutorial schematico electrónico schématique diagrama esquemático projeto elektronisch schematisch schaltplan schematy circuito shema схема skematisk Schaltbild schematisk schaltung application

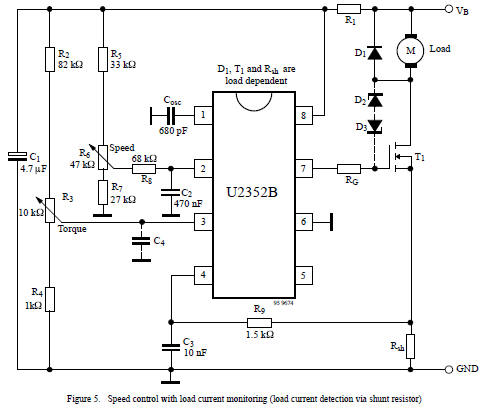

The U2352B bipolar circuit is a PWM device for controlling logic level Power MOSFETs and IGBTs. It allows simple power control for dc motor loads. Integrated load current monitoring with adjustable switch-off threshold also gives the option of measuring the load current via the MOS transistor’s on-state resistance, RDS(on), or via a shunt resistor.

Applications:  Battery-operated screwdrivers  Battery-operated machine tools Halogen lamp controllers  Dimmers  Electronic fuses  High-performance clock generators

    Download schematics (PDF):

    PWM Power Control for DC Loads
