VOLVO 850, 960, S70, V70, S40, V40

Volvo 850, 960, S70, V70, S40, V40

1-+12 VOLT IGNITION WIRE

11-Speaker RF+

2-GND

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-





VOLVO CR-603, CR-606

Volvo CR-603, CR-606

1-SPEAKER R+

8-SPEAKER L+

2-SPEAKER R-

9-SPEAKER L-

5-GND

13-+12 VOLT IGNITION WIRE

6-Power Antenna Turn On

-



VOLVO CT-503




SC 710 - SC 810 - SC 811 - SC 813 - SC 816 - SC 900 - CR 905

( 1 and 7 -GND) (2 - Dimmer) ( 3 - v.M +12) ( 4 -output + antenna or booster) ( 5.6.13 and 14 SalidaAudio unconfirmed) ( 8 - +12 v.Accesorios) ( 9 - +12 v.sense SC-816) ( 10 -Rheostat T / Neg.) ( 11 -Tel.) ( 12 - Mute) ( 15 - FL +) ( 16 -FL-) ( 17 -RL +) ( 18 - RL -) ( 19 -FR +) ( 20 -FR-) (21 -NC) ( 22 -NC) ( 23 -RR +) ( 24 -RR-)








Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

VOLVO

850  92



D75328-551 VDO E2219148PP031

94C46







VOLVO

89DBZZM



H06  FLASH

24C04







VOLVO

CC+CD

DELCO

TMS









VOLVO

CR-502



D178016A522

93LC46 smd







VOLVO

CR-504



D178016A522

93LC46 smd







VOLVO

CR-5093













VOLVO

CR-591  CRX63R

CLARION

D17006GF

S2914 rotated







VOLVO

CR-601

ALPINE

D1714G 673









VOLVO

CR-603

ALPINE

D1714G 673









VOLVO

CR-605

ALPINE











VOLVO

CR-606

ALPINE

D1714G 673









VOLVO

CR-608

ALPINE

D1723GF 535









VOLVO

CR-609

ALPINE











VOLVO

CR-702

ALPINE

D1714G-586









VOLVO

CR-705

ALPINE

D1714G-586









VOLVO

CR-708

ALPINE

D17...?









VOLVO

CR-709

ALPINE

D1723GF 523









VOLVO

CR-710

ALPINE











VOLVO

CR-718



D1723GF 535









VOLVO

CR-801

ALPINE

D1714G









VOLVO

CR-802 RDS

ALPINE

M50934D-062FP









VOLVO

CR-808

ALPINE











VOLVO

CR-810













VOLVO

CR-814

ALPINE

51T25117W02

S22S12I10







VOLVO

CR-815

ALPINE

D75P518GF

3132                        24C01 smd







VOLVO

CR-901 RDS



M50747T-240FP









VOLVO

CR-902 RDS



M38254M6D150FP 529B

3132                        24C02







VOLVO

CR-905 RDS



M38063M6D221FP









VOLVO

CR-906 RDS EON



M38063M6D236FP









VOLVO

CR-915







2xTDA8561Q





VOLVO

CT-503

ALPINE

D178016A 519 or 510

93LC46 smd rotated







VOLVO

CT-503



D178016A 522

93LC46 smd







VOLVO

CT-505





93C46 smd                 rotated







VOLVO

CT-903



M38067MCD173FP

3132                        24C02







VOLVO

CT-906

MITSUBISHI

M38067MCD173FP

3132                        24C02







VOLVO

CT-906 RDS EON

MITSUBISHI

M38067EC106

3132                        24C02

TDA7394





VOLVO

DP-500

DAEWOO

D7006AGF E23

4C016 smd







VOLVO

DP-550 panel

DAEWOO

D17006GF 663

24C01 smd







VOLVO

HU-1205 RDS NAV













VOLVO

HU-405





93LC46 smd







VOLVO

HU-601 TV













VOLVO

HU-605 RDS

JVC



93LC46 smd







VOLVO

HU-655













VOLVO

SC-700 RDS



M38257M8D091FP

3132                        24C02







VOLVO

SC-710





24C01

2xTA8221L





VOLVO

SC-800

ALPINE

D75P516GF

X24C01 smd







VOLVO

SC-801

ALPINE

D75P516GF W31

X24C01 smd







VOLVO

SC-801 RDS  EON  ANTI  THEFT

ALPINE

51T75378W01

24C01







VOLVO

SC-801 RDS  EON  ANTI  THEFT

ALPINE

51T75378W01 + 51T65504W03

24C01







VOLVO

SC-802

ALPINE

M38067HCD170FA

3132                        24C02







VOLVO

SC-805

MITSUBISHI

M38067MCD170

3132                        24C02







VOLVO

SC-810

ALPINE

51T45088W01  401

X24C01 smd







VOLVO

SC-811

ALPINE

51T65439W02

X24C01 smd







VOLVO

SC-813



D75517GF 409

3132







VOLVO

SC-814

ALPINE











VOLVO

SC-815

ALPINE

D75P518GF

3132                        24C02







VOLVO

SC-816

MITSUBISHI

D75517GF 409

24C01







VOLVO

SC-900





X24C01 smd







VOLVO

SC-901

ALPINE

51T15510Y01

X24C01 smd







VOLVO

SR-601













VOLVO

SR-701



M50747T-113SP

ER1400                    808103







VOLVO

SR-7145

ALPINE

51T82258F01









VOLVO

TD-603













VOLVO

VC-601  22 DC652

PHILIPS

47С421AF8807

X24C02







VOLVO

VC-602  22 DC511/77

PHILIPS



24C02







VOLVO

VC-608





24C02







VOLVO

VC-708













VOLVO

VR-100

DELCO

H60 FLASH 09395366 0146EEA03 23194R

9355092 smd                24C02







VOLVO

VR-200



D70F3044YGC

9355092 smd                24C02







VOLVO

VR-300

DELCO

D70F3044YGC

9355092 smd                24C04







VOLVO

VR-400

DELCO



24C04









VOLVO AS340 AUTOSOUND LC7232 8482 S2914 LA4485
VOLVO RDS 24v  BP5037 BLAUPUNKT ST7282A5 (8609500480) M92256 smd TDA2052
VOLVO CR-502 MITSUBISHI D178016A522 93LC46 smd TDA8561Q x 2
VOLVO CR-504   D178016A522 93LC46 smd
VOLVO CR-601 TRUCK ALPINE D1714G673   TA7293P
VOLVO CR-601 TRUCK ALPINE D1714G673   TA7293P
VOLVO CR-603 ALPINE D1714G673   TA7293P
VOLVO CR-605 ALPINE D1714G673
VOLVO CR-606 ALPINE D1714G673
VOLVO CR-608 ALPINE D1714G535   TA8205AH
VOLVO CR-609 ALPINE
VOLVO CR-702 ALPINE D1714G586   TA7292P
VOLVO CR-705 ALPINE D1714G586
VOLVO CR-708 ALPINE D17...?
VOLVO CR-709 ALPINE D1723GF523   TA7293P
VOLVO CR-710 ALPINE
VOLVO CR-718   D1723GF535
VOLVO CR-730   D1723GF523
VOLVO CR-801 ALPINE D1714G
VOLVO CR-802 RDS ALPINE M50934D-062FP
VOLVO CR-808 ALPINE
VOLVO CR-810
VOLVO CR-814 ALPINE 51T25117W02 138 S22S12I10
VOLVO CR-834 ALPINE 51T25117W02 138 S22S12I10
VOLVO CR-901 RDS ALPINE M50747T232FP   TA7293P
VOLVO CR-901 RDS ALPINE M50747T240FP   TA7293P
VOLVO CR-902 RDS MITSUBISHI M38254M6D150FP529B 3132 smd TDA1558Q x 2
VOLVO CR-905 RDS MITSUBISHI M38063M6D221FP   TDA1558Q x 2
VOLVO CR-906 RDS MITSUBISHI M38063M6D236FP   TDA1558Q x 2
VOLVO CR-915   D17010GF579   TDA1558Q x 2
VOLVO CT-503  small panel MITSUBISHI D178016A510 93LC46 smd TDA8561Q x 2
VOLVO CT-503  small panel MITSUBISHI D178016A519 93LC46 smd TDA8561Q x 2
VOLVO CT-505  small panel MITSUBISHI D178016A519 93LC46 smd TDA8561Q x 2
VOLVO CT-903 CD MITSUBISHI M38067MCD173FP 3132 smd
VOLVO CT-906 MITSUBISHI M38067MCD173FP 3132 smd TDA8561Q x 2
VOLVO DP-500 DAEWOO D7006AGFE23 4C016 smd TDA7394
VOLVO DP-550 panel DAEWOO D17006GF663 or D17006AGFE48 24C01 smd
VOLVO HU-401     93LC46 smd LA4708N x 2
VOLVO HU-403     93LC46 smd
VOLVO HU-405   D703035ACG 022 93LC46 smd LA4708N x 2

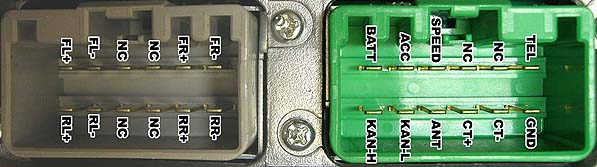

VOLVO HU-415   D70F3035AGC 93LC46 smd LA4708N x 2
VOLVO HU-450 MITSUBISHI
VOLVO HU-555 MITSUBISHI D703035AYGC-J11 24C02 smd TA8261A
VOLVO HU-601 MITSUBISHI D78078GF092 93L46 smd TA8233H x 2
VOLVO HU-603
VOLVO HU-605 MITSUBISHI D703035AGC022 93LC46 smd LA4708N x 2
VOLVO HU-611
VOLVO HU-613
VOLVO HU-615 MITSUBISHI D703035AGC022 93LC46 smd LA4708N x 2
VOLVO HU-615 MITSUBISHI D70F3035AGC 93LC46 smd LA4708N x 2
VOLVO HU-635   D70F3033GC 93LC46 smd
VOLVO HU-650 CC MITSUBISHI
VOLVO HU-650 CC+CD
VOLVO HU-655   D70F3035AYGC 24C02
VOLVO HU-801 RDS MITSUBISHI D78P078GF 93LC46 smd TA8233
VOLVO HU-803 RDS   D78078GF074 93C46 smd
VOLVO HU-850 6CD MITSUBISHI
VOLVO HU-1205 RDS NAV     93LC46 smd LA4708N x 2
VOLVO SC-700 RDS MITSUBISHI M38257M8D091FP 3132 smd TDA1558Q x 2
VOLVO SC-710 ALPINE D17010GF577
VOLVO SC-800 RDS ALPINE D75P516GFW47 X24C01 smd TA8221L x 2
VOLVO SC-801  Premium Sound System ALPINE D75P516GFW31  +  51T75378W01 X24C01 smd TA8221L x 2
VOLVO SC-802 MITSUBISHI M38067HCD170FA 3132 smd TDA1558Q x 2
VOLVO SC-802 MITSUBISHI M38067HCD170FA 3132 smd TDA1558Q x 2
VOLVO 805 MITSUBISHI M38067MCD166FP 3132 smd
VOLVO SC-805 MITSUBISHI M38067MCD170FP 3132 smd TDA1558Q x 2
VOLVO SC-805 MITSUBISHI M38067MCD170FP 3132 smd TDA1558Q x 2
VOLVO SC-810 ALPINE 51T45088W01-401  or D75P516GFW31 X24C01 smd TA8221L x 2
VOLVO SC-811  Premium Sound System ALPINE 51T65439W02 X24C01 smd
VOLVO SC-813 MITSUBISHI D75517GF409 or GF376 3132 smd TDA1558Q x 2
VOLVO SC-815  Premium Sound System MITSUBISHI D75P518GF  or D75517GF376 3132 smd TDA1558Q x 2
VOLVO SC-816 MITSUBISHI D75517GF409 3132 smd TDA1558Q x 2
VOLVO SC-835  Premium Sound System MITSUBISHI D75517GF376 3132 smd
VOLVO SC-900 ALPINE 51T85271W01 065 + 51T85273W01 066 X24C01 smd NO
VOLVO SC-900 ALPINE 51T85271W02 A13 X24C01 smd TA8215L ??
VOLVO SC-901 ALPINE 51T15510Y01 X24C01 smd
VOLVO SR-601
VOLVO SR-701   M50747T-113SP A11122
VOLVO SR-7145 ALPINE 51T82258F01 S22S12I10
VOLVO TD-603 ALPINE D1723GF523   NO
VOLVO VC-601 (22 DC652/77) PHILIPS 47C421AF8807 24C02 TDA1518BQ
VOLVO VC-602 (22 DC511/77) PHILIPS D1723GF639  511/77 RC1 24C02
VOLVO VC-608 (22 DC670/77) PHILIPS 47C421AF8544 24C02 TDA1518Q
VOLVO VC-708
VOLVO VR100  09387819 DELCO N60 FLASH (09395366) 9355092 16219796
VOLVO VR100 DELCO   8006687 16219796
VOLVO VR200  09387839 DELCO D70F3044YGC 9355092 16218796
VOLVO VR300 DELCO D70F3044YGC 9355092 16219796
VOLVO VR400 DELCO D70F3044YGC 9355092 TDA7560
