PIONEER KEH-1010QR

KEH-1010QR

6-Speaker LF,RF-

14-GND

19-Speaker RF+

8-Speaker LR,RR-

16-antenna

20-Speaker LR+

9-Speaker LF+

17-GND Aнт

-

10-Speaker RR+

18-+12 VOLT BATTERY WIRE

-



PIONEER KE-1900

Pioneer KE-1900

1-Power Antenna Turn On

3-Speaker RF+

5-Speaker LF+

7-+12 VOLT IGNITION WIRE

2-+12 VOLT BATTERY WIRE

4-Speaker RF- (???)

6-Speaker LF- (???)

8-GND



PIONEER KE-1700SDK

Pioneer KE-1700SDK

1-Speaker LF+

14-GND Speakerов

2-Speaker RF+

17-GND

7-+12 VOLT IGNITION WIRE

18-GND (с обода разьема)

8-Power Antenna Turn On

20-ANT GND

10-ANT

-



 PIONEER KEH-1950

1-Power Antenna Turn On

5-Speaker LF-

9-Speaker LR-

2-+12 VOLT IGNITION WIRE

6-Speaker LF+

10-Speaker RR+

3-Speaker RF-

7-+12 VOLT BATTERY WIRE

11-Speaker RR-

4-Speaker RF+

8-Speaker LR+

12-GND



PIONEER KEH-2500R

Pioneer KEH-2500R, ...

1-Power Antenna Turn On

5-Speaker LF-

9-Speaker LR-

2-+12 VOLT IGNITION WIRE

6-Speaker LF+

10-Speaker RR+

3-Speaker RF-

7-+12 VOLT BATTERY WIRE

11-Speaker RR-

4-Speaker RF+

8-Speaker LR+

12-GND



PIONEER KEH-2600, KEH-3600

KEH-2600, KEH-3600

1-Power Antenna Turn On

5-Speaker RF+

9-Speaker RR+

2-+12 VOLT IGNITION WIRE

6-Speaker RF-

10-Speaker RR-

3-Speaker LF+

7-Speaker LR+

11-+12 VOLT BATTERY WIRE

4-Speaker LF-

8-Speaker LR-

12-GND





PIONEER KEH-3800 (RDS)

Pioneer KEH-3800 (RDS)

1-TEL MUTE

6-Speaker LF-

11-Speaker RR+

2-Power Antenna Turn On

7-Speaker LF+

12-Speaker RR-

3-+12 VOLT IGNITION WIRE

8-+12 VOLT BATTERY WIRE

13-GND

4-Speaker RF-

9-Speaker LR+

-

5-Speaker RF+

10-Speaker LR-

-



PIONEER DEH-P443R

Pioneer DEH-P443R

1-GND

7-Speaker RF-

12-DRSW

2-Power Antenna Turn On

8-Speaker RF+

13-Speaker LR-

4-TEL MUTE

9-+12 VOLT BATTERY WIRE

14-Speaker LR+

5-Speaker LF-

10-Dash Light Dimmer Wire

15-Speaker RR-

6-Speaker LF+

11-+12 VOLT IGNITION WIRE

16-Speaker RR+



PIONEER DEH-624R

Pioneer DEH-624R

1-Speaker LR-

6-Speaker LF-

11-Speaker RF+

2-Speaker RR-

7-Speaker LR+

12-Speaker LF+

3-Power Antenna Turn On

8-Speaker RR+

-

4-GND

9-+12 VOLT BATTERY WIRE

-

5-Speaker RF-

10-+12 VOLT IGNITION WIRE

-



PIONEER DEH-790SDK

Pioneer DEH-790SDK

1-TEL MUTE

6-GND

2-+12 VOLT IGNITION WIRE

7-+12 VOLT BATTERY WIRE

3-Dash Light Dimmer Wire

8-Booster

4-Speaker RF+

9-Speaker RF-

5-Speaker LF+

10-Speaker LF-



PIONEER DEH-M980RDS, KEH-M8300RDS, KEH-M9300RDS

Pioneer DEH-M980RDS,
KEH-M8300RDS, KEH-M9300RDS

1-Speaker LR-

6-Speaker RF-

11-+12 VOLT BATTERY WIRE

2-Speaker RR-

7-Speaker LF-

12-Power Antenna Turn On

3-TEL MUTE

8-Speaker LR+

13-Speaker RF+

4-+12 VOLT IGNITION WIRE

9-Speaker RR+

14-Speaker LF+

5-Dash Light Dimmer Wire

10-GND

-



PIONEER KEH-M7005W

Pioneer KEH-M7400RDS

1-+12 VOLT BATTERY WIRE

6-+12 VOLT BATTERY WIRE

2-Speaker  RF+

7-Speaker RR+

3-Speaker  LF+

8-Speaker RR-

4-Speaker F-

9-Speaker LR+

5-GND

10-Speaker LR-



PIONEER KEH-M7400RDS

Pioneer KEH-M7400RDS

1-ANT REMOTE

5-Speaker LF+

8-Speaker RR+

2-+12 VOLT IGNITION WIRE

6-Speaker  L-

9-Speaker  R-

4-+12 VOLT BATTERY WIRE

7-Speaker LR+

10-Speaker RF+



PIONEER DEQ-9200

Pioneer DEQ-9200

1-GND

3-ANT REMOTE

2-+12 VOLT IGNITION WIRE

4-Dash Light Dimmer Wire



PIONEER KEH- M9800

1-Speaker RR-

Ч

10-Общий



17-Питание память



2-Speaker RR+



11-Батарея 12в



18-Gnd лин. выход



3-Gnd



12-Speaker LR-

Ч

19-Выход L лин



4-Speaker RF-

Ч

13-Speaker LR+



20-Выход R лин



5-Speaker LF-

Ч

14-Speaker RF+



-



9-Питание antennaенна B+



15-Speaker LF+



-







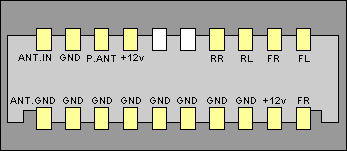

PIONEER

Pioneer

1-+12 VOLT BATTERY WIRE

3-ANT REMOTE

9-Speaker L+

11-ANT

2-+12 VOLT IGNITION WIRE

7-Speaker R+

10-GND Speaker

12-ANT GND

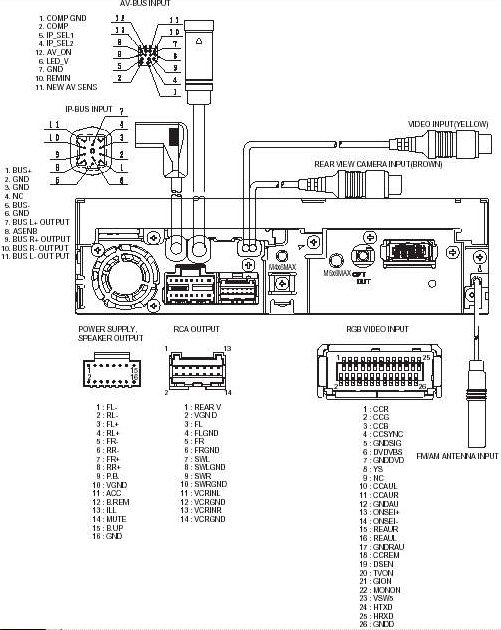

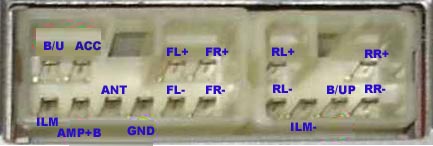

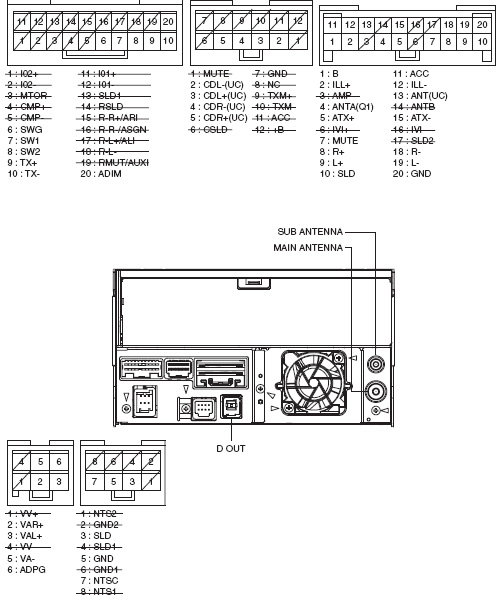

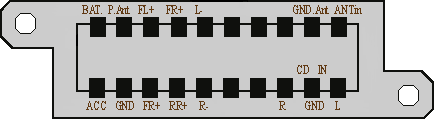

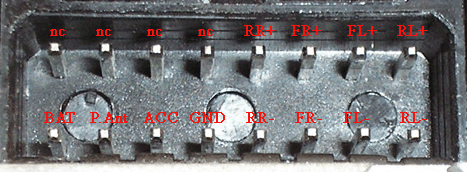

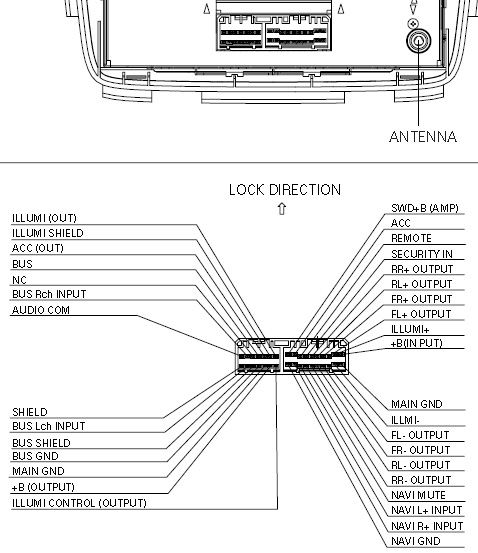

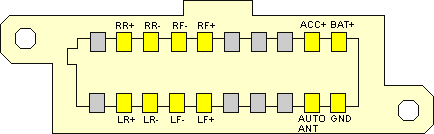

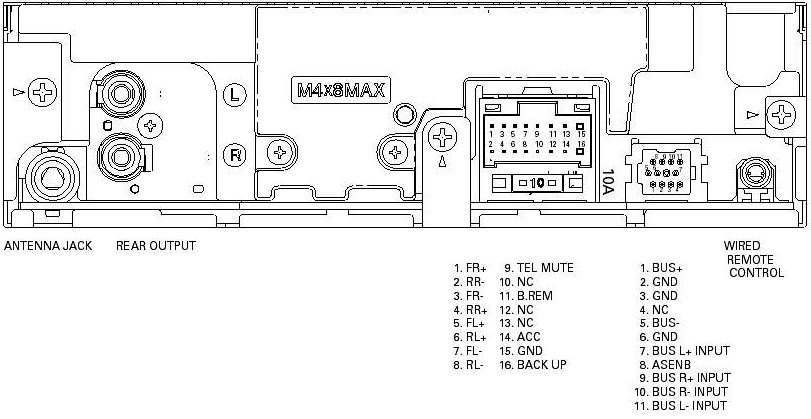

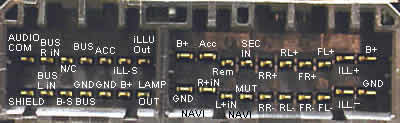

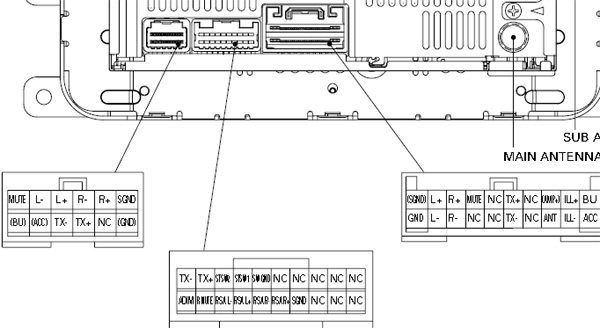

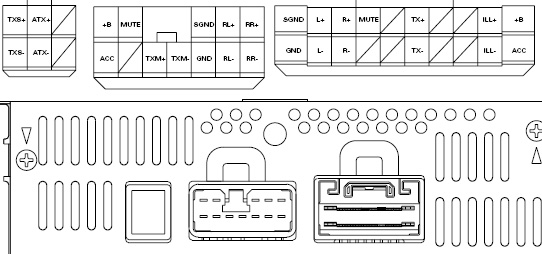

PIONEER 3TF0 (FX-MG6006ZH BOSE changer ACURA)

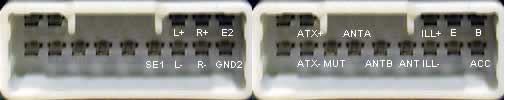

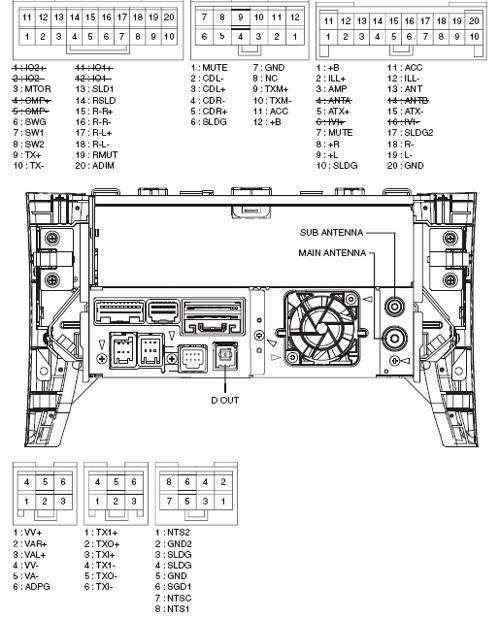

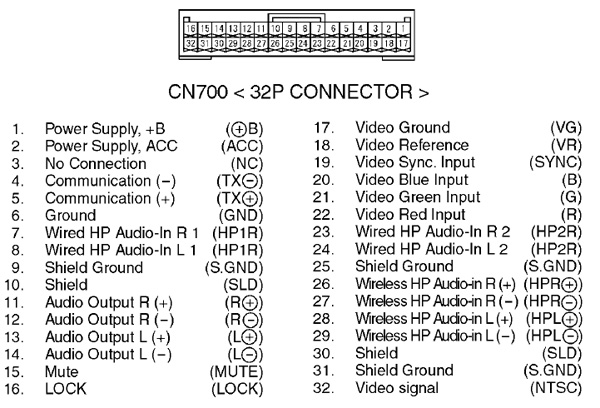

PIONEER KEX-M9076ZT (LEXUS)







Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

PIONEER

DEH-2006 RDS CD panel

PIONEER



PDH004A         (24C44?)







PIONEER

DEH-2096

PIONEER



S220







PIONEER

DEH-66SDK

PIONEER

PD4136B

PDG011           (CXK1011)







PIONEER

DEH-86 CD

PIONEER











PIONEER

DEH-P440

PIONEER

P5246A









PIONEER

DEX-66

PIONEER











PIONEER

DEX-77

PIONEER



PDH001           (S29H30?)







PIONEER

KEH-5080SDK

PIONEER

PD4124D 1714639

PDG011           (CXK1011)







PIONEER

KEH-6060SDK

PIONEER











PIONEER

KEH-6080SDK

PIONEER

PD4124D 1714639

PDG011           (CXK1011)







PIONEER

KEH-8050

PIONEER











PIONEER

KEH-8080B

PIONEER

PD4114

PDO011           (CXK1011)







PIONEER

KEH-8080SDK

PIONEER

PD4126A

PDG011           (CXK1011)







PIONEER

KEH-9000RDS

PIONEER

PD4168

PDG011           (CXK1011)







PIONEER

KEH-9080SDK

PIONEER

PD4126A

PDG011           (CXK1011)







PIONEER

KEH-M9741ZT

PIONEER

PD4227B

PDH001







PIONEER

KEM-6080SDK

PIONEER











PIONEER

KEX-500SDK

PIONEER

PD3069B

PDH001







PIONEER

KEX-900SDK

PIONEER

PD3069

PDH001

NEMA





PIONEER

KEX-M700SDK

PIONEER

PD4128B

PDG6011









PIONEER AVIC-D3 PIONEER   93C46 smd + 93C56 smd
PIONEER DEH-66SDK PIONEER PD4136B PDG011 TA8215L
PIONEER DEH-86 CD PIONEER
PIONEER DEX-66 PIONEER
PIONEER DEX-77SDK PIONEER   PDH001
PIONEER KEH-5080SDK PIONEER PD4124D 1714639 PDG011 TA8205AH
PIONEER KEH-6060SDK PIONEER
PIONEER KEH-6080SDK PIONEER PD4124D 1714639 PDG011
PIONEER KEH-8050 PIONEER
PIONEER KEH-8080B PIONEER PD4114 PDO011
PIONEER KEH-8080SDK PIONEER PD4126A PDG011
PIONEER KEH-9000RDS PIONEER PD4168 PDG011
PIONEER KEH-9080B PIONEER PD4125 CXK1011 TA8205AH
PIONEER KEH-9080SDK PIONEER PD4126A PDG011
PIONEER KEH-M9741ZT PIONEER PD4227B PDH001
PIONEER KEX-500SDK PIONEER PD3069B PDH001
PIONEER KEX-M700SDK PIONEER PD4128B PDG011 NO
PIONEER KEX-900SDK PIONEER PD3069 PDH001
