OPEL Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install

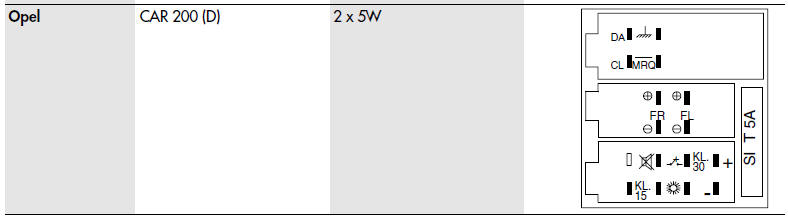

OPEL Philips SC201, Blaupunkt SC202, Grundig CAR200

Opel

A

B

4-+12 VOLT BATTERY WIRE

1-Speaker RR+ (нет в CAR200)

5-Power Antenna Turn On

2-Speaker RR- (нет в CAR200)

6-Dash Light Dimmer Wire

3-Speaker RF+

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

8-GND

5-Speaker LF+

C

6-Speaker LF-

1-SDA

7-Speaker LR+ (нет в CAR200)

2-SCL

8-Speaker LR- (нет в CAR200)

3-GND

-

4-MCS (MBR)

-





OPEL FRONTERA

Opel Frontera

1-+12 VOLT IGNITION WIRE

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

GND-обод разьема

11-Speaker RF+

-





PHILIPS SC804





Grundig R 100

CAR 200



Opel

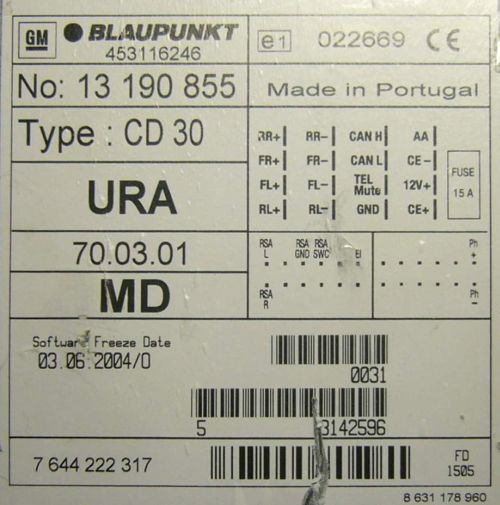

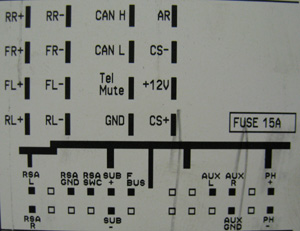

CD30, CDC30MP3(*3), CDC400 (*4)


styk z陰cze g堯wne z陰cze A (CD-C) z陰cze B
1 g這郾ik RR+ RSA L(*3) -
2 g這郾ik RF+ - -
3 g這郾ik LF+ RSA GND (*3) AUX L (*3)
4 g這郾ik LR+ RSA SVC(*3) -
5 g這郾ik RR- SUB + (*4) AUX R (*3)
6 g這郾ik RF- El/F BUS(*3) telefon in -
7 g這郾ik LF- RSA R(*3) -
8 g這郾ik LR- - -
9 CAN H - -
10 CAN L - masa AUX (*3)
11 mute GND (Delco)/SUB- (*4) -
12 masa - telefon in +
13 sterowanie anten x x
14 CS- x x
15 +12V x x
16 CS+ x x


Opel
CD50 PHONE


styk z陰cze g堯wne z陰cze A (CD-C) z陰cze B
1 g這郾ik RR+ RSA L masa mikrofonu
2 g這郾ik RF+ masa AUX AIR-BAG
3 g這郾ik LF+ RSA GND -
4 g這郾ik LR+ RSA SVC -
5 g這郾ik RR- - CGI+
6 g這郾ik RF- - -
7 g這郾ik LF- RSA R mikrofon +
8 g這郾ik LR- AUX L -
9 CAN H AUX R SPD
10 CAN L - -
11 - - CGI-
12 masa - -
13 sterowanie anten x x
14 CE- x x
15 +12V x x
16 CE+ x x



Grundig Car radio CAR200(D), CAR 2002, R100, SC303



GM car radio wiring connector audio

  The factory wire colors given are typical of most GM vehicles.



















Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

OPEL

92096 (343)

EUROVOX

D17012GF 594









OPEL

BOSE

PHILIPS



24C16





CORSA

OPEL

CAR 200 (D)  bez displeja

GRUNDIG

D17003AGF E14

24C016 smd

TDA7372A





OPEL

CAR 300 (D)  bez displeja

BLAUPUNKT

MC68HC05B16 (8925901664)

24C01  ,  MCU

TDA7372A





OPEL

CAR 300 (D)  bez displeja

BLAUPUNKT

ZC99190CFN  MC68HC05B6  (8925901664)

24C016  ,  MCU







OPEL

CAR 300 (D)  bez displeja

BLAUPUNKT

ZC86574CFN  MC68HC01B16

MCU







OPEL

CAR 300

BLAUPUNKT

MC68HC05  (8925904186)

24C016  ,  MCU







OPEL

CAR 300

BLAUPUNKT

ZC412485CFN (8925901469)

24C01  ,  MCU







OPEL

CAR 300 (D)  2F2

BLAUPUNKT

ZC99190CFN  MC68HC05B6   (8925901664)

MCU







OPEL

CAR 300 (E)

BLAUPUNKT

ZC505930CFN (8925904396)

MCU

TDA7375





OPEL

CAR 300 (E)  bez displeja

BLAUPUNKT

ZC503364CFN MC68HC05B16  (8925904186)

24C01  ,  MCU







OPEL

CAR 300 (D) bez displeja













OPEL

CAR 300 (F)  bez displeja

BLAUPUNKT

ZC505930CFN MC68HC05B16  (8925904396)

MCU

TDA7372A





OPEL

CAR 400 MK1 (22 DC396/75E)  (2F3)

PHILIPS

P83CE559EFB 010or 030or 023

24C16

TDA7375





OPEL

CAR 400 MK2 (22 DC399/75)

PHILIPS

P83CE560EFB 043or 050

24C16 smd







OPEL

CAR 400(X)

PHILIPS

P87CE560EFB

24C16 smd







OPEL

CAR 600 CDC3

PHILIPS





TDA7365



CORSA

OPEL

CAR2002

GRUNDIG

R/CAR200X-1  NEC

24C01 smd







OPEL

CAR2003

BLAUPUNKT

MC68HCO5  ZC505930CFN  (8925904396),

LSC423255CFN  (8925904197)

24C01 smd







OPEL

CAR2003 (F)

BLAUPUNKT











OPEL

CAR2004

DELCO











OPEL

CAR2005













OPEL

CAR2006











OMEGA

OPEL

CART2007

PHILIPS

SAF-C167CR-LM  +M27C4002

28C64







OPEL

CART2008













OPEL

CCR2005

BLAUPUNKT











OPEL

CCR2006  2DIN   2 kody  bez displeja

PHILIPS

P87C560EFB/01

24C16

2xTDA7375





OPEL

CCR600

PHILIPS

P83CE560

24C16





OMEGA

OPEL

CCR800 BOSE

PHILIPS











OPEL

CCRT700

PHILIPS



28C64







OPEL

CCRT700 + GSM  GM0700

PHILIPS

SAF-C167CR-LM  +M27C4002

28C64







OPEL

CCRT2008

PHILIPS



28C64







OPEL

CD300

BLAUPUNKT

MC68HC05B6 (8945903234)

MCU







OPEL

CD300

BLAUPUNKT

ZC408632CP  MC68HC05B6 (8925902875)

MCU







OPEL

CD300

BLAUPUNKT

ZC408632CP  MC68HC05B6 (8925902875)

MCU

2xTDA2005





OPEL

CD300 D  RDS BP1300 bez displeja

BLAUPUNKT

ZC400851CFN MC68HC05B8 (8925900915)

MCU

2xTDA2005





OPEL

CD300 D  RDS bez displeja

BLAUPUNKT

ZC86543CFN  MC68HC05B6  (8925901096)

MCU

2xTDA2005





OPEL

CD300 D  RDS bez displeja

BLAUPUNKT

MC68HC05B6  (8925901097)

MCU

2xTDA2005





OPEL

CD300 RDS

BLAUPUNKT

MC68HC05B8  (8925901097)

MCU

2xTDA2005





OPEL

CD300 RDS

BLAUPUNKT

MC68HC05B8  (8925901097)

MCU

2xTDA2005





OPEL

CD300 D  RDS

BLAUPUNKT

MC68HC05B6  (8925900915)

MCU







OPEL

CD300 RDS

BLAUPUNKT

MC68HC05B8  (8925900915)









OPEL

CDC-2 cd changer

BLAUPUNKT

ZC410645CFU  MC68HC05X32 (8925901549)









OPEL

CDC3 22 DC075/75 CD changer

PHILIPS

SAK-C161CI-8EM

24LC64







OPEL

CDR500   2F4   22DC403/75

PHILIPS











OPEL

CDR500(D)

DELCO

TMS370C756AFNT









OPEL

CDR500(E) 2F4

VDO











OPEL

CDR600

VDO











OPEL

CDR2005

SIEMENS











OPEL

CDR2005(E)

VDO

P83CE560EFB 066

24C16





CORSA

OPEL

CDR2005

DELCO

TMS

MCU







OPEL

CRC2006







LA4440





OPEL

CR13390

INTERCONTI



TC89101







OPEL

DC599  RIDER  II

PHILIPS

D1708AG852

GAL16V8(PLD)







OPEL

DC670

PHILIPS

47C421AF8536

X2402

2xTDA1516Q





OPEL

DC681

PHILIPS

TMP47C800N-2389

X2402







OPEL

DC684

PHILIPS











OPEL

DC685

PHILIPS





2xTDA1516Q





OPEL

DC720/78

PHILIPS

PCF80C51BH

24C04 + 24C08

KIA6210AP





OPEL

HARMONY ib14723

INTERCONTI

TC9309F-009

TC89101P

TDA2003





OPEL

M101B (Radio) France

PHILIPS

47C421AF8535

24C02







OPEL

MIAMI C90

BLAUPUNKT



SDA2516







OPEL

NCDR1100 bez displeja

SIEMENS











OPEL

NCDR1500 bez displeja

SIEMENS











OPEL

NCDC2015 bez displeja

SIEMENS









OMEGA

OPEL

NCDC2013 bez displeja

SIEMENS



24C16

NEMA





OPEL

NCDC2013 NAVI bez displeja

SIEMENS



24LC32

NEMA





OPEL

R100 (C) tuner

GRUNDIG

D17003AGFE14

24C01







OPEL

R2001 tuner   2DIN

GRUNDIG

R/CAR200X-1  NEC

24C01 smd







OPEL

SC201(C)  bez displeja

PHILIPS

D17P19G

24C02

2xTDA2005





OPEL

SC202(C)    GM0202

BLAUPUNKT

MC68HC05B6 (8925900244)

MCU

2xTDA2005





OPEL

SC202(C)    GM0202

BLAUPUNKT

MC68HC05B6  (8925900612)

MCU







OPEL

SC202(С)    GM0202

BLAUPUNKT

ZC408963CFN  MC68HC05B6  (8925901030)

MCU







OPEL

SC202(С)    GM0202

BLAUPUNKT

ZC408737CFN  MC68HC05B6 (8925900244)

MCU

TDA2005





OPEL

SC202B      GM0202

BLAUPUNKT

D7514G 404

SDE2516

TDA2005





OPEL

SC202B      GM0202

BLAUPUNKT

D7514G 404

SDE2516







OPEL

SC202D(C)

BLAUPUNKT

ZC422193CFN  MC68HC05B6 (8925901550)

MCU







OPEL

SC202D(C)

BLAUPUNKT

ZC408737CFN  MC68HC05B6 (8925900244)

MCU







OPEL

SC202D(С)

BLAUPUNKT

MC68HC05B6 (8925900901)









OPEL

SC202D(С)

PHILIPS











OPEL

SC202D(С)  GM1202

BLAUPUNKT

ZC408658CFN  MC68HC05B6 (8925900244)

MCU







OPEL

SC202D(С)  bez displeja

BLAUPUNKT

ZC408800CFN  MC68HC05B6 (8925900612)

MCU

2xTDA7350A





OPEL

SC303 (C) bez displeja

GRUNDIG

MC68HC11E9  V5.42

MCU

2xTDA7350A





OPEL

SC303 (C) bez displeja

GRUNDIG

MC68HC11E9  V5.42

MCU

2xTDA7350





OPEL

SC303B

GRUNDIG

D1719G 574

GRN-001 or 2

2xTDA7350A





OPEL

SC303D(C)

GRUNDIG

MC68HC11E9  V5.20

MCU

2xTDA7350A





OPEL

SC303D(C)

GRUNDIG

MC68HC11E9  V5.42

MCU







OPEL

SC304  22 DC846/78

PHILIPS

TMP47C420AF8551

ER1400







OPEL

SC803B

GRUNDIG











OPEL

SC804

GRUNDIG

MC68HC11E9









OPEL

SC804(C)  22 DC891/75F

PHILIPS

P83CE558EFB009

24C16

4xTDA7241





OPEL

SC804B

GRUNDIG

MC68HC11A8









OPEL

SC804D(C)

PHILIPS

P83CE558EFB002

24C16





OMEGA

OPEL



PHILIPS



28C64







OPEL

SC804D(C)

PHILIPS

PCF80C51BH  3PJ306

24C04 or 24C16









OPEL 92076(343) EUROVOX D17012GF594
OPEL CC 20  EHU 1   without display BLAUPUNKT D70F3079 M95640 smd TDA7375 x 2
OPEL CD 30  EHU 2 minus   without display BLAUPUNKT D70F3079 M95640 smd TDA7375 x 2
OPEL CD 30  GM0031 EHU 2a Minus  without display BLAUPUNKT
OPEL CD 30  GM0031 EHU 2a Minus  without display BLAUPUNKT D70F3089YG3 M95640 smd TDA7375 x 2
OPEL CD 30  EHU 2a Minus  without display BLAUPUNKT D70F3281YGC V850ES/SG2 M95640 smd TDA7375 x 2
OPEL GM0031 EHU 2a Minus  without display BLAUPUNKT D703088Y106 (8 925 905 981) M95640 smd TDA7375 x 2
OPEL CD 30 MP3 UCH-UK6  without display SIEMENS VDO   24C64 smd
OPEL CD 30 MP3  without display BLAUPUNKT D70F3079 M95640 smd TDA7375 x 2
OPEL CD 30 MP3  without display BLAUPUNKT D70F3079 M95640 smd TDA7375 x 2
OPEL CD 30 MP3  GM0D30 EHU 2 without display DELPHI GRUNDIG D70F3281YGC V850ES/SG2 24C32 smd TDA7561
OPEL CD 50 PHONE  EHU 3a   without display BLAUPUNKT D70F3079 M95640 smd + M25P10 smd TDA7375 x 2
OPEL CD 60 MMEDIA  EHU 3b  without display BLAUPUNKT
OPEL CD 70 NAVI  GMGEHU4C1-01  without display SIEMENS VDO
OPEL CDC 40 OPERA  without display BLAUPUNKT D70F3079 (8611200644) M95640 smd + M25P10 smd TDA7376B + TDA7564
OPEL CDC 80 MMEDIA  EHU 3c  without display BLAUPUNKT
OPEL R 10  EHU 0   without display BLAUPUNKT D70F3079 (8611200639) M95640 smd TDA7375 x 2
OPEL CR13390 INTERCONTI TC9309F009 TC89101P LA4440
OPEL M101(B)  GM0101  only radio PHILIPS 47C421AF8535 24C02 TDA2003
OPEL SC202B   GM0202 BLAUPUNKT D7514G404 SDE2516 TDA2005 or GL1150
OPEL SC203
OPEL SC303B GRUNDIG D1719G574 or 547 or 641 GRN-001 or GRO-002 TDA7350 x 2
OPEL SC304  22 DC846/78 PHILIPS TMP47C420AF8551 ER1400
OPEL SC803B GRUNDIG
OPEL SC804B GRUNDIG MC68HC11A8 (4870 RDS-3) or MC68HC11E1 (4870 RDS-435) TDA7241 x 4
OPEL SC804 GRUNDIG MC68HC11E9
OPEL SV 284 GRUNDIG D1719G641 or D1719G574 GRN-002 TDA7350 x 2
OPEL DC599  RIDER II PHILIPS D1708AG852 GAL16V8 (PLD)
OPEL DC670 PHILIPS 47C421AF8536 X2402 TDA1518Q x 2
OPEL DC681 PHILIPS TMP47C800N2389 X2402 TDA1516Q x 2
OPEL DC682 PHILIPS TMP47P800N 24C04 + 24C04 TDA1516Q x 2
OPEL DC684 PHILIPS
OPEL DC685  22 DC685/78 PHILIPS TMP47C800-2344 24C02 TDA1516Q x 2
OPEL DC720  22 DC720/78 PHILIPS PCF80C51BH-3 24C04 + 24C08 TDA1516Q x 2
OPEL without display MATSUSHITA D78016A568 93LC46 smd
OPEL PANASONIC ETY650M MATSUSHITA D17005GF547   TA8210AH x 2
OPEL PANASONIC ETY810M without display MATSUSHITA D17005GF(A)986   TA8210AH x 2
OPEL HARMONY ib14723 INTERCONTI TC9309F009 TC89101P



OPEL Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

OPEL Car radio wiring diagrams. Car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

OPEL auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.
