MITSUBISHI CARISMA, COLT, ECLIPSE, PAJERO, LANCER

Mitsubishi CARISMA, COLT, ECLIPSE, PAJERO, LANCER

1-Speaker RR+

8-Speaker LR-

2-Speaker LR+

10-+12 VOLT IGNITION WIRE

3-Power Antenna Turn On

11-+12 VOLT BATTERY WIRE

4-Dash Light Dimmer Wire +

12-Dash Light Dimmer Wire

5-Speaker LF+

13-Speaker LF-

6-Speaker RF+

14-Speaker RF-

7-Speaker RR-

GND-обод разьема



MITSUBISHI RH - 9413



MITSUBISHI AR-2565 FY-2



MITSUBISHI P801 CQ-JB6810L

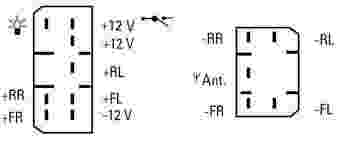

Mitsubishi II (pm) old models 1989
Lancer from 3 / 96
from 94 Pajero
Colt up to 12/95





MITSUBISHI MEX-810 CDC






Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

MITSUBISHI

4U57WD

MITSUBISHI









GALANT

MITSUBISHI

22 DC712/65

PHILIPS









GALANT

MITSUBISHI

22 RC348

PHILIPS











MITSUBISHI

9044  MR173204 (RX-1E62CWYD)

MITSUBISHI

M38257M8D093FP

24C01C6     (24C01)







MITSUBISHI

9059

MITSUBISHI

D170010GF 605

93LC46 smd

2xLA4708





MITSUBISHI

9138  MR225579

MITSUBISHI

D17010GF 649

93LC46 smd







MITSUBISHI

DX3SE

MITSUBISHI











MITSUBISHI

DX412RP

MITSUBISHI





2xLA4708





MITSUBISHI

DY-2U05CWD

MITSUBISHI

D17708GC 612

93C46







MITSUBISHI

E026 Q401

MITSUBISHI

D17010GF 570

93LC46 smd







MITSUBISHI

E045 ( CZ-2U75W )

MITSUBISHI



93LC46 smd







MITSUBISHI

E049 ( CZ-2U75W-2 )

MITSUBISHI

D17010GF 649

93LC46 smd







MITSUBISHI

M016

MITSUBISHI











MITSUBISHI

M087

MITSUBISHI

D17010GF 641









MITSUBISHI

M565

MITSUBISHI











MITSUBISHI

M566  RX337

MITSUBISHI











MITSUBISHI

M567

MITSUBISHI











MITSUBISHI

M581

MITSUBISHI

D1723 GF









MITSUBISHI

M584

MITSUBISHI











MITSUBISHI

M585

MITSUBISHI











MITSUBISHI

MMC-510

AUTOSOUND

SHINTOM 119133300+LC7230

  93C46







MITSUBISHI

MR490090 YEFM01883A

MATSUSHITA



93C46







MITSUBISHI

MZ311011  ME0820

MITSUBISHI

M38257M8D093FP

24C01 smd







MITSUBISHI

P502

MATSUSHITA









SPACE STAR, CARISMA

MITSUBISHI

PH3000













MITSUBISHI

Q401

MITSUBISHI











MITSUBISHI

RX1E62

MITSUBISHI

M38257M8D093FP

24C01C6                   24C01







MITSUBISHI

RX2E74W (M071)

MITSUBISHI

D78056FGC030

93LC46 smd







MITSUBISHI

RX2U75WD   (M590)

MITSUBISHI











MITSUBISHI

RX2U75WD2 (M091)

MITSUBISHI



93LC46 smd







MITSUBISHI

RX336Y ( M579 )

MITSUBISHI

D170010

93LC46 smd







MITSUBISHI

RX366L ( 34M068 )

MITSUBISHI











MITSUBISHI

USA

MITSUBISHI

D17010GF 618









MITSUBISHI

W075

MITSUBISHI

D17010GF 660

93LC46 smd







MITSUBISHI

W079

MITSUBISHI

D17010GF 638

93LC46 smd














MITSUBISHI 262SC   D1723GF632 CXK1011
MITSUBISHI INFINITY BE6806 BECKER
MITSUBISHI M016 MITSUBISHI
MITSUBISHI M024  RX-1JF2W  MR141882 MITSUBISHI
MITSUBISHI M051  RX-2J44Z MITSUBISHI D17003AGF641   HA13128 x 2
MITSUBISHI M068  RX-366L MITSUBISHI
MITSUBISHI M071  RX-2E74W-E MITSUBISHI D78056FGC030 93LC46 smd LA4708 x 2
MITSUBISHI M091  RX-2U75WD-2 MITSUBISHI   93LC46 smd
MITSUBISHI M095  RX-2U74WP-MS  MR337629 MITSUBISHI D17010GF625 93LC46 smd LA4708 x 2
MITSUBISHI M097  RX-2U74WP-2  MR337629  CZ-2U75 MITSUBISHI D17010GF669 93C46 smd
MITSUBISHI M565  RX-367CWY MITSUBISHI   93LC46 smd
MITSUBISHI M566 MITSUBISHI
MITSUBISHI M567  RX-366CWY MITSUBISHI D17010GF554 93LC46 smd
MITSUBISHI M579  RX-336Y  MR123624 MITSUBISHI D17010GF554 93LC46 smd MC13304T3A x 2
MITSUBISHI M584 MITSUBISHI
MITSUBISHI M585 MITSUBISHI
MITSUBISHI M590  RX-2U75WD MITSUBISHI
MITSUBISHI M596  RX-2U75WM MITSUBISHI D17010GF625 93C46 smd
MITSUBISHI MZ311011  ME0820 MITSUBISHI M38257M8D090FP 24C01 smd
MITSUBISHI MADG 340 AUTOSOUND LC7232-8428 S2914 LA4485
MITSUBISHI MEX-710 RDS MITSUBISHI
MITSUBISHI MEX-850CDC   D178078BGF901 93C46 smd LA4742
MITSUBISHI MMC-510 AUTOSOUND SHINTOM 119133300 + LC7230 93C46
MITSUBISHI INFINITY E026  CZ-4U4CWY MITSUBISHI D17010GF570 93LC46 smd
MITSUBISHI E026  CZ-4U57CWYD MITSUBISHI
MITSUBISHI INFINITY E045  CZ-2U75W MITSUBISHI   93LC46 smd
MITSUBISHI INFINITY E047  CZ-2U65CWYD-2 MR225581 MITSUBISHI D17010GF649 93LC46 smd NO
MITSUBISHI E049  CZ-2U75W-2  MR252914 MITSUBISHI D17010GF649 93LC46 smd NO
MITSUBISHI E059  CZ-2U07WYTD  MR337271  no display MITSUBISHI D17708GC600 or GC611 93LC46 smd
MITSUBISHI DX-262SC  MZ310187 MITSUBISHI D1723GF662 CXK1011P TA8210H
MITSUBISHI DX-412RP MZ310190 MITSUBISHI M50934D-095FP   TA8210H
MITSUBISHI DY-2E56GY-TH  MR587702HA  no display MITSUBISHI   93C56 smd
MITSUBISHI DY-2E56GY-TH  MR587702HB  no display MITSUBISHI
MITSUBISHI P001  MR587268 MATSUSHITA D780058288 93C46 smd
MITSUBISHI P004  MR587387 MATSUSHITA
MITSUBISHI P313 MATSUSHITA
MITSUBISHI INFINITY P501 MATSUSHITA D78054GC208 93C46 smd NO
MITSUBISHI P502 MR268234 MATSUSHITA D78054GC073 93C46 smd MC13304T3 x 2
MITSUBISHI P503 MR193959 MATSUSHITA D78054GC208 or GC094 93C46 smd TA8210AH
MITSUBISHI P508 MR173092 MATSUSHITA D78054GC208 93C46 smd TA8210AH
MITSUBISHI INFINITY P601 MR193958  CD MATSUSHITA D78054GC912 93C46 smd NO
MITSUBISHI P705 MR372323 MATSUSHITA D17017GFB44 93C46 smd TA8251AH
MITSUBISHI P801 MR337269  no display MATSUSHITA D78015F550 S130 smd LA4708N x 2
MITSUBISHI P901 MR472955  CD MATSUSHITA D78016F567 9946 S130 smd LA4708N x 2
MITSUBISHI P911 MR563520  CD MATSUSHITA D78016F567 S130 smd LA4708 x 2
MITSUBISHI INFINITY P912 MR490090  CD MATSUSHITA D78016F572 S130 smd NO
MITSUBISHI INFINITY P913 MR472958 MATSUSHITA D78016F572 S130 smd NO
MITSUBISHI PH-1000A  MZ312565  without display MITSUBISHI
MITSUBISHI PH-1000W  MZ311990  without display MITSUBISHI D178078BGF514   LA4705N x 2
MITSUBISHI M0113 RX-1E94WTZ  MR337278  no display MITSUBISHI D178078BGF514 93C46 smd LA4708N x 2
MITSUBISHI INFINITY Q401 MR141228 MITSUBISHI D17P010GF 93LC46 smd NO
MITSUBISHI MR173091 MATSUSHITA D78054GC208 93C46 smd NO
MITSUBISHI INFINITY MR193958  CD MATSUSHITA D78054GC208 93C46 smd NO
MITSUBISHI 9044 MR173204  RX-1E62CWYD MITSUBISHI M38257M8D093FP 24C01
MITSUBISHI 9059 MITSUBISHI D170010GF605 93LC46 smd
MITSUBISHI 9138 MR225579  RX-2U65CWYD-2 MITSUBISHI D17010GF649 93LC46 smd LA4708 x 2
MITSUBISHI 9181 MZ594188  RX-1E94WT-WS  no display MITSUBISHI D178078BGF514 93LC46 smd LA4708 x 2
MITSUBISHI U020 MR172230 MITSUBISHI
MITSUBISHI INFINITY U043   MR309315 RZ-5U77CWY-2 MITSUBISHI D17010GF678 93LC46 smd NO
MITSUBISHI U068 MR490089  DY-2U05W MITSUBISHI D17708GC612 or GC602 93LC46 smd LA4708N x 2
MITSUBISHI INFINITY U069  MR472957 DZ-2U05W MITSUBISHI D17708GC612 93LC46 smd NO
MITSUBISHI U076  DY-2U25W  MR587385 MITSUBISHI D178078BGF519   LA4742
MITSUBISHI U095  DY-3E44S-SL MITSUBISHI   93LC56 smd
MITSUBISHI U097  RY-3E44S-SL MITSUBISHI D780078GK 93LC56 smd
MITSUBISHI U114  DY-2E54WT-DB-WS  no display MITSUBISHI D780078GK548
MITSUBISHI U171  DY-2E64WT-TH  no display MITSUBISHI D780078GK531 93LC56 smd
MITSUBISHI W075 MR309756 DY-2U81W MITSUBISHI D17010GF660 or GF671 or D17P010GF 93LC46 smd LA4708 x 2
MITSUBISHI W079 MITSUBISHI D17010GF638 93LC46 smd
MITSUBISHI INFINITY W125 MR337276 RZ-5U07WYTD 34W125 no display MITSUBISHI D17708GC611 93LC46 smd NO
MITSUBISHI W142 MZ312720   no display MITSUBISHI D178078BGF904 93LC46 smd LA4708N x 2
MITSUBISHI W142 DY-2E94WTZ  MR337279   no display MITSUBISHI D178078BGF516 93LC46 smd LA4708N x 2
MITSUBISHI W190 DY-2U05CWD MR472956 MITSUBISHI D17708GC612 or GC602 93LC46 smd LA4708N x 2
MITSUBISHI INFINITY W211 DZ-2U07WYTD  MR490088  no display MITSUBISHI D17708AGC612 93LC46 smd
MITSUBISHI W286 DY-2U25CWD MITSUBISHI D178078BGF902   LA4742
MITSUBISHI W286 DY-2U25CWM  MR587248 MITSUBISHI
MITSUBISHI INFINITY W287 DZ-2U27WYTD  MR587251  no display MITSUBISHI D178078BGF902   NO
MITSUBISHI W330 DY-3U47U MR570496 MITSUBISHI D178078BGF909
MITSUBISHI Y069 RX-8J77W  no display MITSUBISHI
