1-Speaker RF+

 8 -Speaker RR+

2-Speaker LF+

 9 -Speaker RF-

3-Dash Light Dimmer Wire

10-Speaker LF-

4-ВAT+

11-Mute

5-+12 VOLT IGNITION WIRE

14-Gnd

6-Power Antenna Turn On

15-Speaker LR-

7-Speaker LR+

16-Speaker RR-



ACURA FX-MG6006 ZH
ACURA MU920A0 (Japan)





2003 Acura TL Car Radio Stereo Wiring Diagram

Car Radio Constant 12v+ Wire: White/Green
Car Radio Switched 12v+ Wire: White/Red
Car Radio Ground Wire: Black
Car Radio Illumination Wire: Red/Black
Car Stereo Dimmer Wire: N/A
Car Stereo Antenna Trigger: Yellow/White
Car Stereo Amp Trigger Wire: N/A
Car Stereo Amplifier Location: N/A
Front Speakers Size: N/A
Front Speakers Location: N/A
Left Front Speaker Positive Wire (+): Blue/Green
Left Front Speaker Negative Wire (-): Gray/Black
Right Front Speaker Positive Wire (+): Red/Green
Right Front Speaker Negative Wire (-): Brown/Black
Rear Speakers Size: N/A
Rear Speakers Location: N/A
Left Rear Speaker Positive Wire (+): Blue/Yellow
Left Rear Speaker Negative Wire (-): Gray/White
Right Rear Speaker Positive Wire (+): Red/Yellow
Right Rear Speaker Negative Wire (-): Brown/White





Acura 2002 TL car stereo wiring diagram harness







Acura 2002 TL car stereo amplifier wiring diagram harness









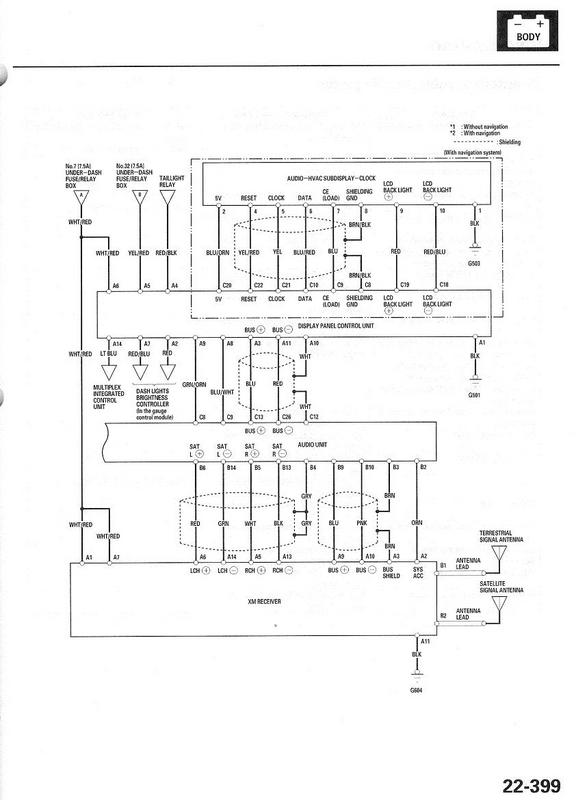

Acura 2005 TL car stereo wiring diagram harness









Acura RSX ewd 2006

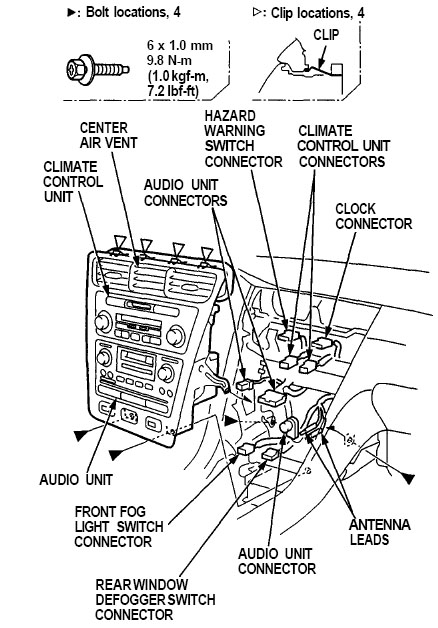

Acura RL (1996-2004) Center radio Dashboard Removal replacement instructions

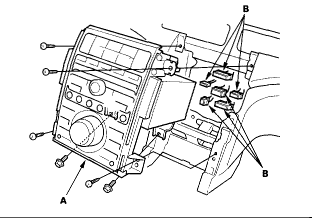

Acura RL 2005 radio panel removal replacement instructions









Acura TL radio panel removal Center Console installation replacement instructions

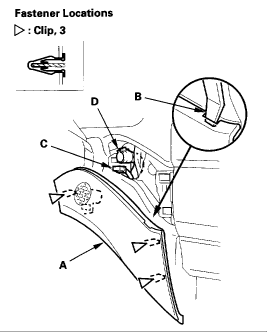

2004 TSX driver inner panel removal

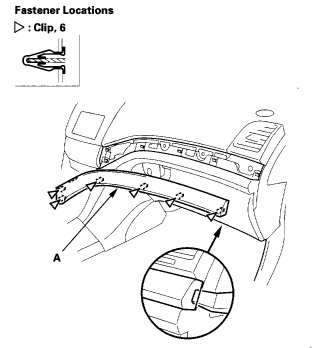

Acura 2004 TSX pasneger trim panel removal









Acura 2004 TSX center console panel removal

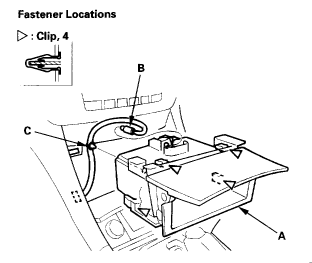

Acura 2004 TSX center upper pocket removal

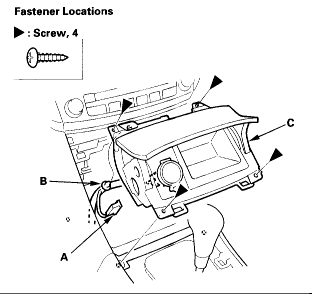

Acura 2004 TSX center lower pocket removal







Acura 2004 TSX radio panel removal replacement instructions







2005 Acura MDX radio panel removal replacement instructions

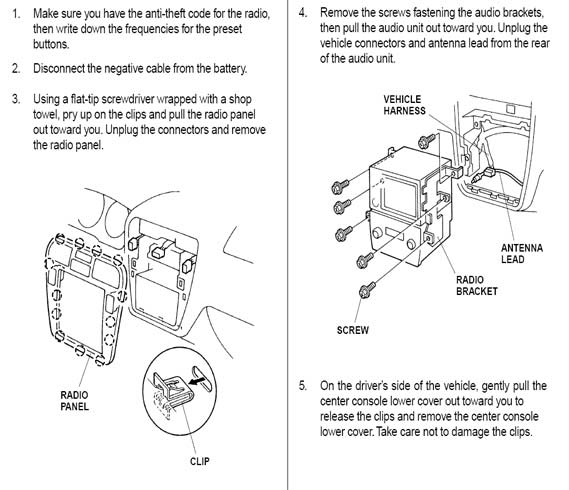

Acura mdx 2001-2004 radio panel removal replacement instructions







Acuar MDX cigarette lighter diagram



Acura

CL

1997-

-1999

Old 16 pin connector



Acura

CL

2001-

-2002

Without BOSE



Acura

CL

2001-

-2002

With BOSE (not muting subwoofer) use Mute pin 14

Bose logo on speaker grills

Acura

CL

2002-

-2003

All



Acura

CSX

2006-

-2012





Acura

CSX

2006-

-2012

Type-S



Acura

EL

1996-

-2000

Old 16 pin connector



Acura

EL

2001-

-2005





Acura

Integra

1997-

-1999

Old 16 pin connector



Acura

Integra

1999-

-2001

All



Acura

Integra

2002-

-2006





Acura

Legend

1991-

-1995

Old 16 pin connector



Acura

MDX

2001-

-2002

Without BOSE



Acura

MDX

2001-

-2002

With BOSE

Bose logo on speaker grills

Acura

MDX

2003-

-2006

All



Acura

MDX

2007-



All. Connect to amplifier behind right kick panel, passenger side.



Acura

NSX

1998-

-2004

Old 16 pin connector



Acura

RDX

1998-

-2004

All



Acura

RDX

2005-



All. Connect to amplifier in front of gear leaver.



Acura

RL

1996-

-2003

All (Old 16 pin connector)



Acura

RL

2004-

-2004

All



Acura

RL

2005-



All (connect mute wire to Low Mute pin 24 in 32 pin connector to mute centre speaker and subwoofer)



Acura

RSX

2002-



Without BOSE



Acura

RSX

2002-



With BOSE

Bose logo on speaker grills

Acura

SLX

1996-

-1999

Old 16 pin connector



Acura

TL

1995-

-1998

All (Old 16 pin connector) not muting overhead speakers



Acura

TL

1999-

-2003

All including BOSE (not muting subwoofer) Mute pin 14



Acura

TL

2004-

-2004

All (connect mute wire to Low Mute pin 16 in 26 pin connector to mute centre speaker and subwoofer)



Acura

TL

2005-

-2006

All (connect mute wire to Low Mute pin 20 in 26 pin connector to mute centre speaker and subwoofer)



Acura

TL

2007-

-2008

All (connect mute wire to Low Mute pin 14 in 40 pin connector to mute centre speaker and subwoofer)



Acura

TL

2009-



Connect to amplifier in right side of boot.



Acura

TSX

2004-

-2008

All



Acura

TSX

2009-



Connect to amplifier in right side of boot.



Acura

Vigor

1989-

-1995

Old 16 pin connector



Acura

ZDX

2010-



ELS Surround Sound System








Car radio Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

 CD changer

 Car

ACURA



MATSUSHITA











ACURA

1102

MATSUSHITA

D75116GFA 911

93C46







ACURA

1106   39100-SM4-A312-M1

MATSUSHITA

D17005GF 902

93LC46 smd







ACURA

1107

MATSUSHITA











ACURA

1108

MATSUSHITA

D17010GF 908

93LC46 smd







ACURA

2TB0 BOSE MT939A0

ALPINE











ACURA

3403 KEH-M7036ZM

PIONEER

PD4432A

P2100







ACURA

BOSE 2100  CM-3929

ALPINE

51T25615W03









ACURA

BOSE 2200  CM-6913

ALPINE

51T25615W03



2xTA8210L





ACURA

CD

MATSUSHITA











ACURA

CD

MATSUSHITA











ACURA

CD

MATSUSHITA











ACURA

CM 3919  2DIN

ALPINE

51T25615W03  or  01









ACURA

CM 3929

ALPINE











ACURA

CM 839R0

ALPINE



24C01







ACURA

CM 936C0

ALPINE











ACURA

CM 939C0

ALPINE

51T5571W02

24C01







ACURA

CM 940A0

ALPINE











ACURA

MT939C0

ALPINE











ACURA

MU920A0













ACURA

FX MG6006ZH BOSE changer  6 CD

PIONEER

PE5170A 78055A52

BR9010 smd







ACURA

1TJ2 BOSE  6CD

MATSUSHITA

C2CBHG000069



NEMA










ACURA 1102 MATSUSHITA D75116GF(A)911 NMC9306 EEPROM
ACURA 1107 MATSUSHITA
ACURA 1AF2 MATSUSHITA D703035BYGC J10 24L04 smd EEPROM NO
ACURA 1TB0 MATSUSHITA D784938AFG158 93C66 EEPROM
ACURA 1TJ2 BOSE  6CD MATSUSHITA C2CBHG000069 93C46 EEPROM NO
ACURA 1TJ3 MATSUSHITA D84936AGF152 S530 EEPROM NO
ACURA 1XF8 MATSUSHITA D703035BYGCJ10 24C04 smd + 24C02 smd EEPROM
ACURA 2100 BOSE PREMIUM  CM-6923 ALPINE 51T25615W03   JUMPERS
ACURA 2200 BOSE  CM-6913 ALPINE 51T25615W03   JUMPERS TA8210L x 2
ACURA 2BF0 MN837AO ALPINE 51-08388Z02 502 24C32 smd EEPROM
ACURA 2PF0 MU920A0 ALPINE 51T25585Y02 M02 0012K4001 + 51T25605Y01 A88 0015M4003 24C04 smd EEPROM TA8261H
ACURA 2PF1 MU923AO ALPINE 51T25605Y01 A88 + 51T55566Y01 M06 24C04 smd EEPROM TA8261H
ACURA 2PF3 MF925A0 ALPINE   24C32 smd EEPROM
ACURA 2TB0 BOSE MT939A0 ALPINE     JUMPERS
ACURA 3403 PIONEER PD4432A P2100 EEPROM
ACURA 3403 PIONEER PD4432B P2100 EEPROM PAL001A
ACURA 3PR0 DVZ-MG6067ZH PIONEER M30878FJBGP A U3  93C86 smd EEPROM NO
ACURA DVZ-MG6067ZH PIONEER   93C86 smd EEPROM
ACURA 3TB0 FH-MG6106ZH PIONEER     EEPROM
ACURA 3TF0 BOSE 6CD PIONEER PE5170A 78055A52 BR9010 smd EEPROM NO
ACURA 3TF0 BOSE 6CD PIONEER PE5170A 78055A52 BR9010 smd EEPROM NO
ACURA 6CD PIONEER   BR9010 smd EEPROM NO
ACURA 6CD PIONEER PE5258A 78056P01 BR9010 smd EEPROM NO
ACURA 3TF7  6CD PIONEER PD5960A602 93C56 smd EEPROM NO
ACURA 3TL0 6CD BOSE PIONEER   S131 smd EEPROM NO
ACURA 3TL0 6CD BOSE PIONEER   S131 smd EEPROM NO
ACURA   MATSUSHITA   S530 smd EEPROM
ACURA 7EA0 PREMIUM SOUND SYSTEM 6CD MATSUSHITA D784936AGF133 S530 smd EEPROM NO
ACURA 7EA0 PREMIUM SOUND SYSTEM 6CD MATSUSHITA   S530 smd EEPROM NO
ACURA 7EB0 PREMIUM SOUND SYSTEM 6CD MATSUSHITA   S530 smd EEPROM NO
ACURA 7ED0 6CD MATSUSHITA D784936AGF133 S530 smd EEPROM
ACURA 7HB0  6CD MATSUSHITA D784937AGF126 S530 smd EEPROM NO
ACURA 7KP0  6CD MATSUSHITA D784937AGF136 S530 smd EEPROM NO
ACURA 7GA0 PREMIUM SOUND SYSTEM 6CD NAVIGATION MATSUSHITA + ALPINE D784936AGF153 S530 + 24C02 EEPROM
ACURA MU920AB ALPINE 51T25585Y02 M02 0012K4001 + 51T25605Y01 A88 0015M4003 24C04 smd EEPROM
ACURA CM3919 ALPINE 51T25615W03 or W01   JUMPERS
ACURA CM3929 ALPINE     JUMPERS
ACURA CM936CO ALPINE     JUMPERS
ACURA CM939AO ALPINE 51T75571W02 X24C01 JUMPERS
ACURA CM939CO ALPINE 51T75571W02 X24C01 JUMPERS
ACURA CM940A0 ALPINE     JUMPERS
ACURA 2TF0 HF937AO 6CD+DVD ALPINE   24C16 smd EEPROM
ACURA HF938AO 6CD+DVD ALPINE   24C16 smd EEPROM NO
ACURA MT939AA ALPINE 51T15339Y01 + 51T15295Y01   JUMPERS
ACURA MT939C0 ALPINE     JUMPERS
ACURA CD MATSUSHITA
ACURA CD MATSUSHITA D78013(A)807 93C46 smd EEPROM MC13304T3S
ACURA   CLARION M30622MA-E46QP 93C46 smd EEPROM
ACURA 4XJ1 CLARION M30622MA-F08GP 93C46 smd EEPROM
ACURA 4XL0 CLARION+MATSUSHITA D70F3035BYGC + D3035BYGC044 93L66 smd + S530 EEPROM NO
ACURA   MATSUSHITA D78014GC76 93C46 smd EEPROM TA8251AH
ACURA   MATSUSHITA D784936AGF133 S520 EEPROM NO
ACURA   MATSUSHITA D703035BYGC 24L04 smd EEPROM
ACURA       24C16 smd
ACURA   MATSUSHITA D784938AGF178 93C66 smd EEPROM
ACURA   MATSUSHITA D784935AGF137 93C46 smd EEPROM
ACURA CD MATSUSHITA
ACURA RD665A0  monitor ALPINE
ACURA DVD BN425AB ALPINE     NO
ACURA DVD BN410AA ALPINE
ACURA BN443AN navigation unit ALPINE V024B DGA4 102AHF 24C02 smd EEPROM
ACURA RO620A0  NAVIGATION ALPINE D78P054GC + D6708G 0110EN
